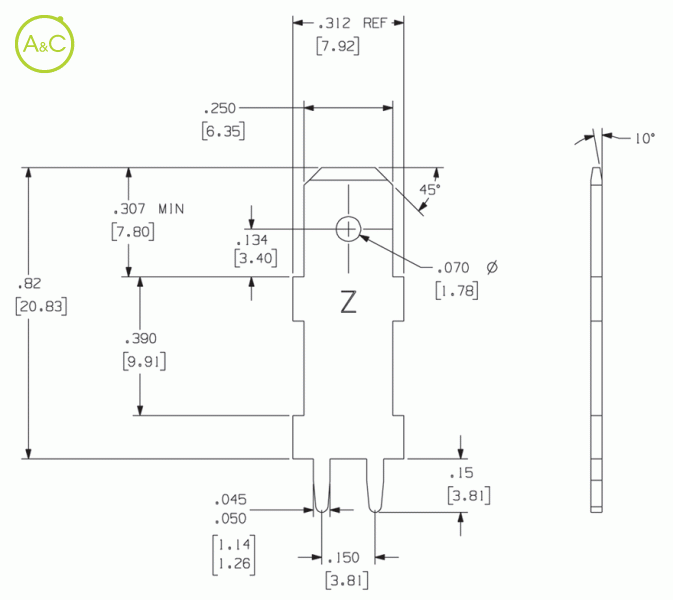

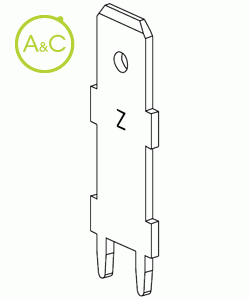

0.250" (6.35mm) Tabs / Quick Disconnect Terminals

  • Straight, 24.64 mm high
  • General
Article Number 953-MOD
Packaging Loose
Extra Description Straight, 24.64 mm high
Material Thickness / Type 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating Ul 20 Amperes
Current Rating C-ul 20 Amperes
Ul File Number E146208
Applicator System ZPT81-A
Mounting Type Outward or Inward Splay
Mounting Hole Diameter 0.058" ±0.003" (1.47mm ±0.076mm)
Pieces Per Reel (loose Part No.) NA
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
