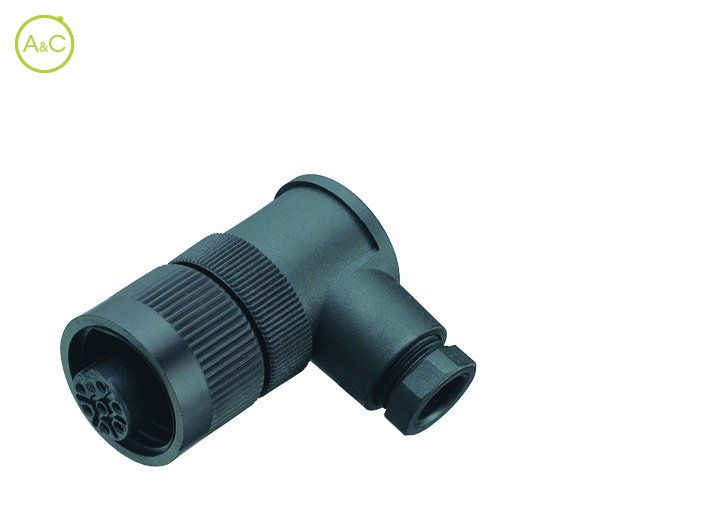

Female angled connector

  • PG9

Number Of Poles

  • 3+PE
  • 6+PE
Article Number 99 0210 70 04

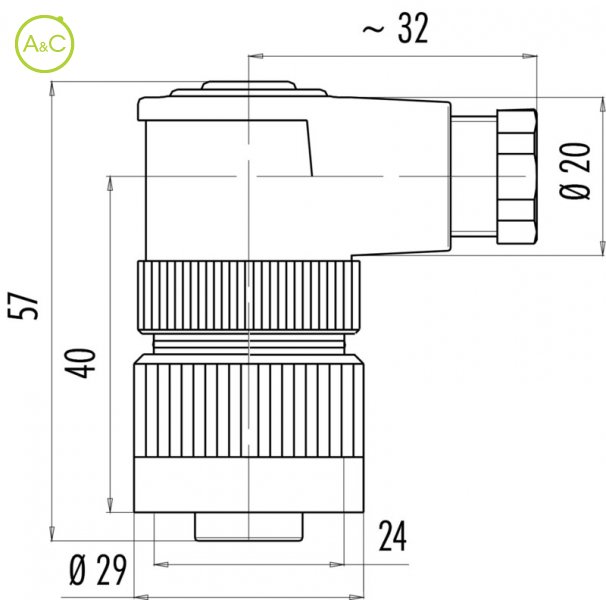

Connector Diameter 29 mm
Number Of Contacts 3+PE contacts
Connector Locking System Screw (RD24)
Termination Screw
Wire Section 0,5 - 2,5 mm²
Protection Degree IP67*
Mating Cycles >500 times
Upper Temperature +100 °C
Lower Temperature -40 °C
Rated Voltage 400
Rated Impuls Voltage 6000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 16 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuSn (Bronze), CuZn (Brass)
Plating Ag (Silver)
Material Of Insert PBT (UL94 V-0)
Material Of Housing PBT (UL94 V-0)
Cable Outlet 6-8 mm
Remark * *IP65 for cable-Ø 6-7 mm
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
