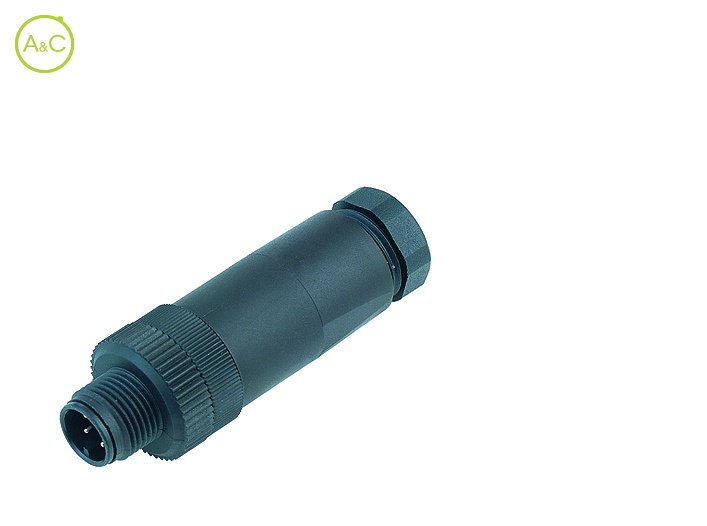

Male cable connector

  • Plastic locking system, screw clamp connection
  • UL-approval

Number Of Poles

  • 4
  • 5
Article Number 99 0429 43 04 99 0429 57 04

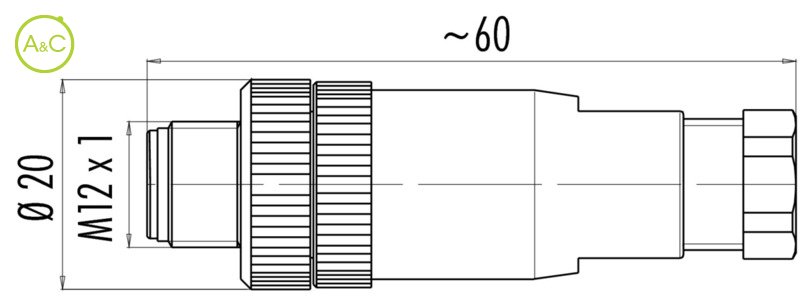

Connector Diameter 20 mm 20 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Screw Screw
Wire Section 0.75 mm² 0.75 mm²
Protection Degree IP67 IP67
Mating Cycles >50 times >50 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 8 mΩ 8 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating CuSnZn (Optalloy) CuSnZn (Optalloy)
Material Of Insert PA PA
Material Of Housing PA PA
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
