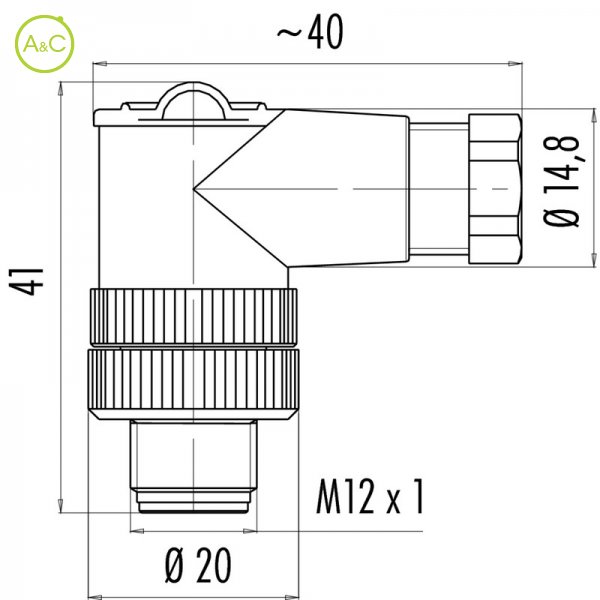

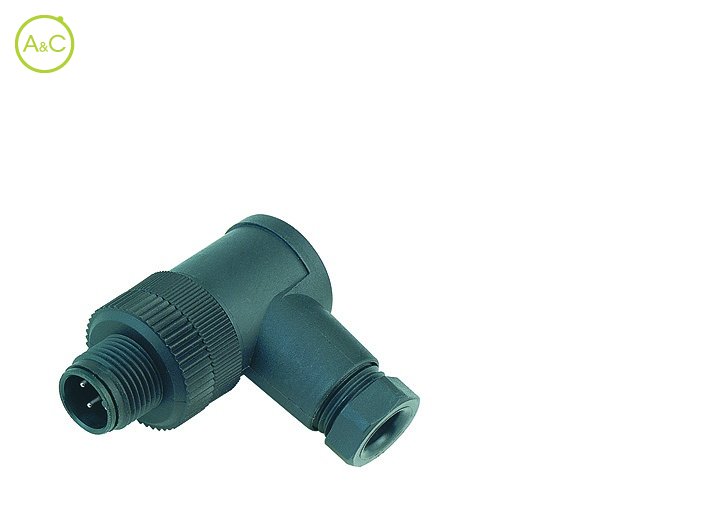

Male angled connector

Heeft u nog vragen over dit product?

Meer info over dit merk:

Article Number	99 0429 44 04	99 0429 20 04
Connector Diameter	20 mm	20 mm
Number Of Contacts	4 contacts	4 contacts (transparent)
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Screw	Screw
Wire Section	0.75 mm²	0.75 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	8 mΩ	8 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	CuSnZn (Optalloy not shielded)	CuSnZn (Optalloy not shielded)
Material Of Insert	PA	PA
Material Of Housing	PBT	PBT
Cable Outlet	4-6 mm	4-6 mm
Product sheet	Download product sheet	Download product sheet

Article Number	99 0437 44 05
Connector Diameter	20 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Screw
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	8 mΩ
Material Of Contact	CuZn (Brass)
Plating	CuSnZn (Optalloy not shielded)
Material Of Insert	PA
Material Of Housing	PBT
Cable Outlet	4-6 mm
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
