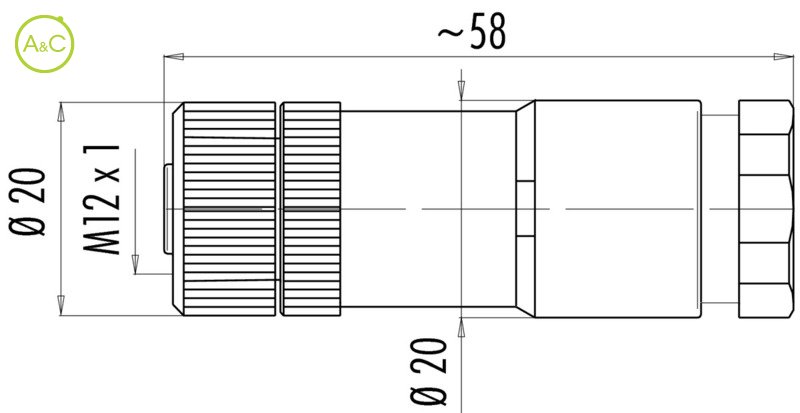

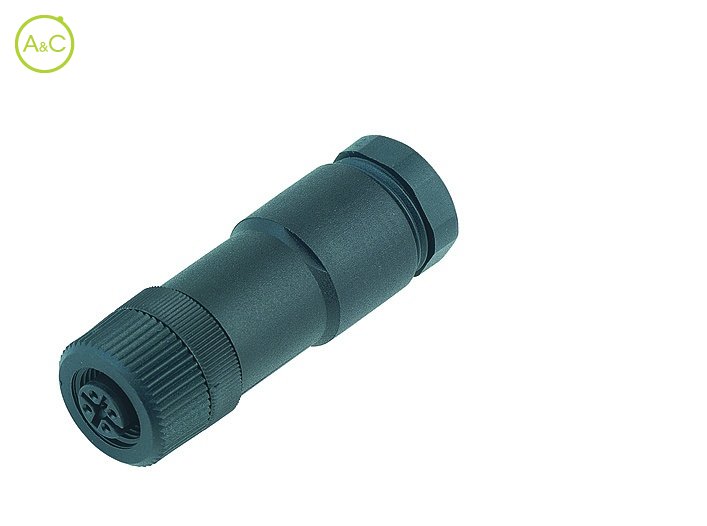

Female cable duo connector

  • Plastic locking system, screw clamp connection, contact surface optalloy
  • UL-approval

Number Of Poles

  • 4
  • 5
Article Number 99 0430 142 04
Connector Diameter 20 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Screw
Wire Section 0.75 mm²
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 8 mΩ
Material Of Contact CuZn (Brass)
Plating CuSnZn (Optalloy)
Material Of Insert PA
Material Of Housing PA
Cable Outlet 2 cables Ø 2,1-3 mm or Ø 4-5 mm mm
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
