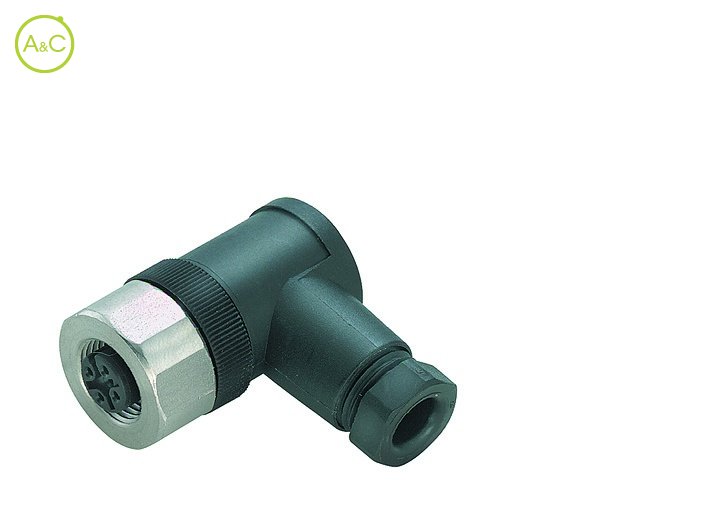

Female angled connector

  • VA locking system, screw clamp connection, contact surface gold
  • UL-approval

Number Of Poles

  • 4
  • 5
Article Number 99 0430 92 04 99 0430 292 04

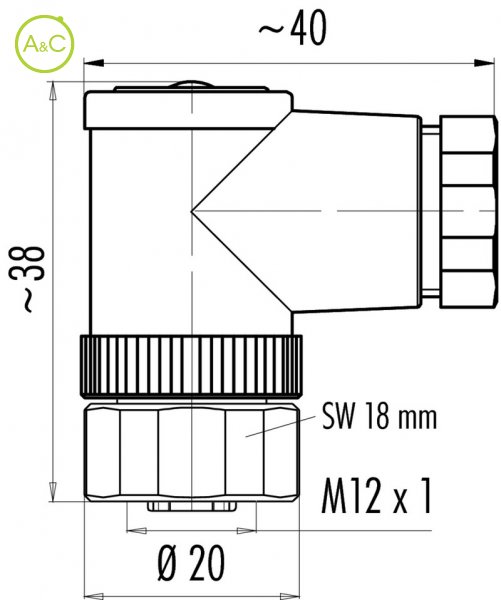

Connector Diameter 20 mm 20 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Screw Screw
Wire Section 0.75 mm² 0.75 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing PBT PBT
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
