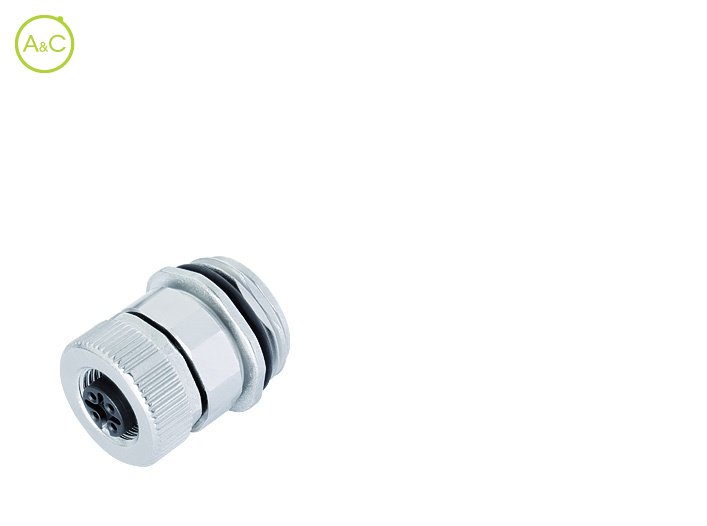

Female panel mount connector

  • Power, screw clamp connection

Number Of Poles

  • 5
  • 8
Article Number 99 0432 500 04

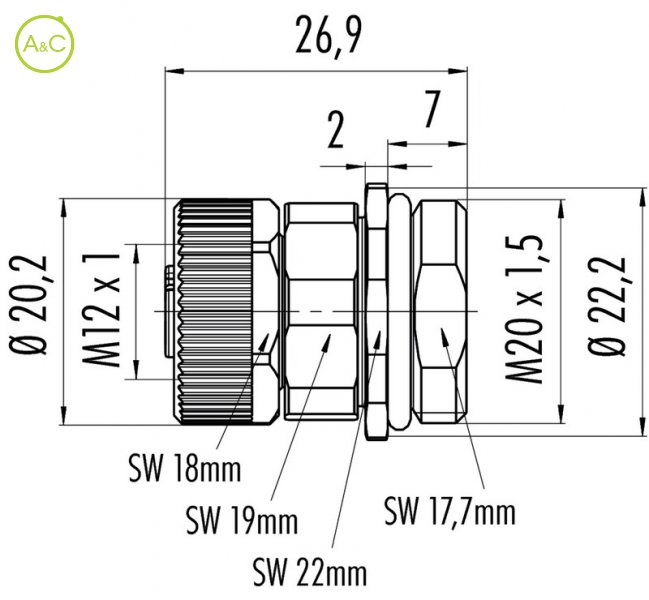

Connector Diameter 22.2 mm
Number Of Contacts 5 contacts
Connector Locking System Screw (M12-A)
Termination Screw clamp
Wire Section 1.5 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 8 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze), CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Zinc diecasting nickel plated
Fixing Thread M20 x 1,5
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
