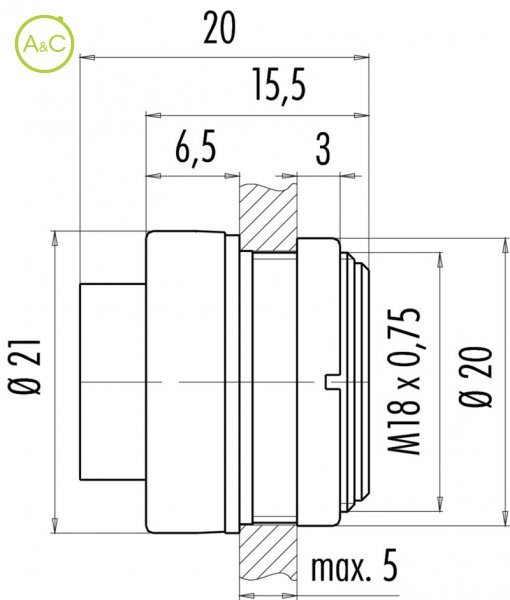

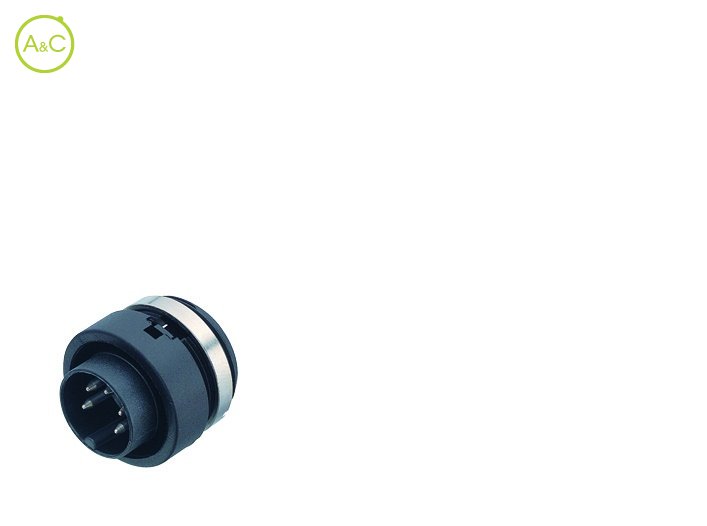

Male panel mount connector

Number Of Poles

  • 2
  • 3 DIN
  • 4
  • 5
  • 6 DIN
  • 7
  • 7 DIN
  • 8 DIN
  • 12
  • 14
  • 16
  • 19
  • 24
Article Number 99 0603 00 02
Connector Diameter 21 mm
Number Of Contacts 2 contacts
Connector Locking System Bayonet
Termination Solder
Wire Section 0.75 mm²
Protection Degree IP40
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250 (32)
Rated Impuls Voltage 1500 V
Pollution Degree 1 (2)*
Overvoltage Categorie I (II)*
Material Group III
Rated Current (40°) 7 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuZn (Brass)
Plating Ag (Silver)
Material Of Insert PBT (UL 94 V-0)
Material Of Housing PA (UL 94 V-0)
Remark * *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
