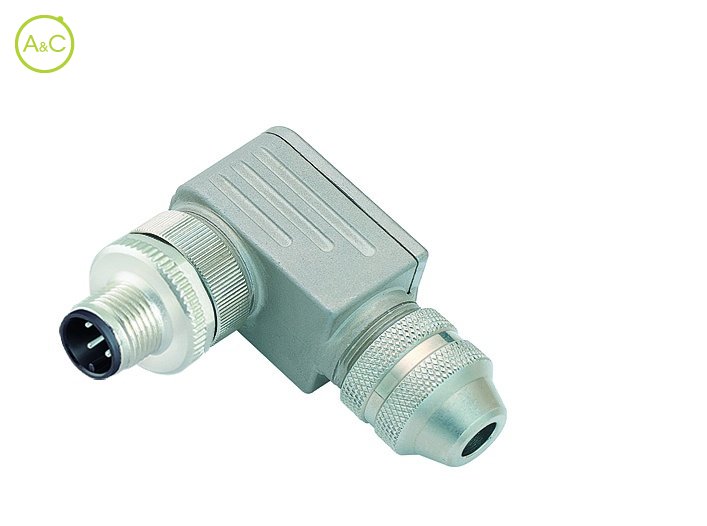

Male angled connector

  • Shieldable, screw termination, version with shielding ring
  • UL-approval

Number Of Poles

  • 4
  • 5
Article Number 99 1429 820 04
Connector Diameter 20 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-B)
Termination Screw
Wire Section 0.75 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA, zinc diecasting nickel plated
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
