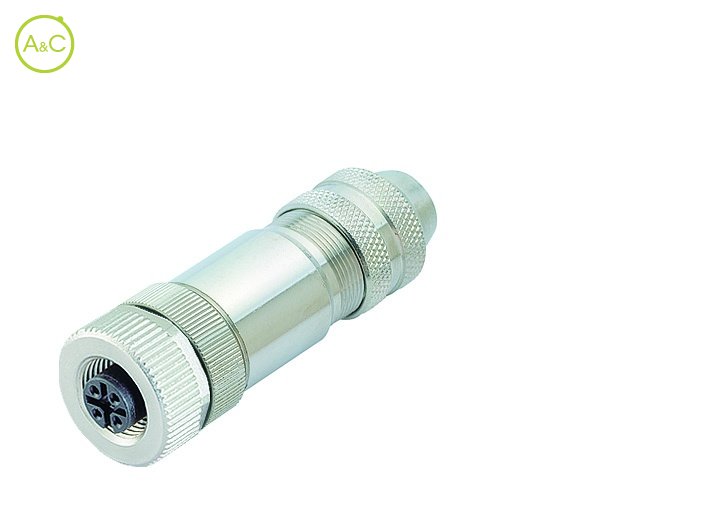

Female cable connector

  • Shieldable, screw clamp connection, version with shielding ring, solder termination on 12 pol
  • UL-approval

Number Of Poles

  • 4
  • 5
  • 8
  • 12
Article Number 99 1430 814 04 99 1430 812 04

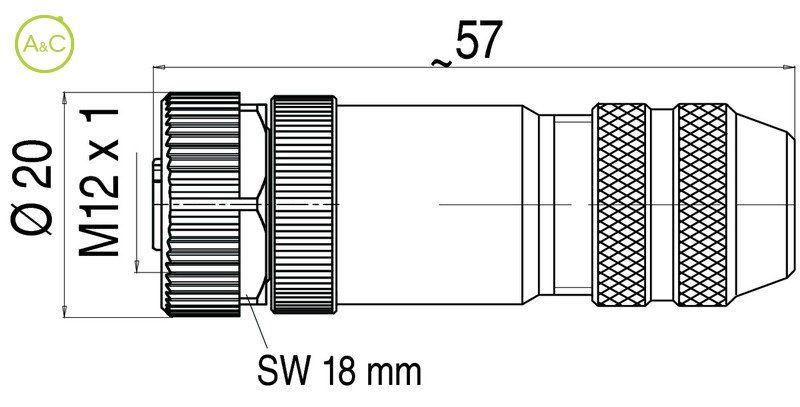

Connector Diameter 20 mm 20 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Screw Screw
Wire Section 0.75 mm² 0.75 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing Zinc diecasting nickel plated, brass nickel plated Zinc diecasting nickel plated, brass nickel plated
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
