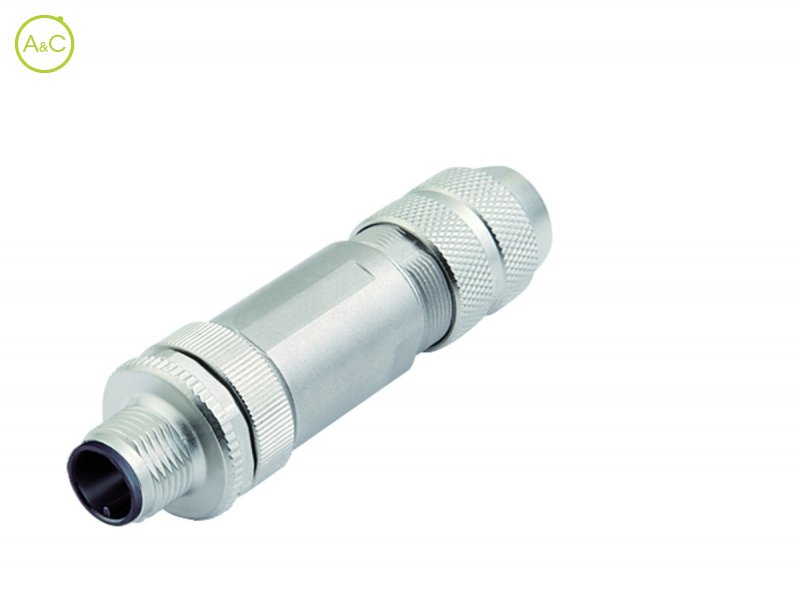

Male cable connector

  • Shieldable, Crimp connection

Number Of Poles

  • 4
Article Number 99 1433 810 04
Connector Diameter 20.2 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Crimp
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Cable Outlet 5-8 mm
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
