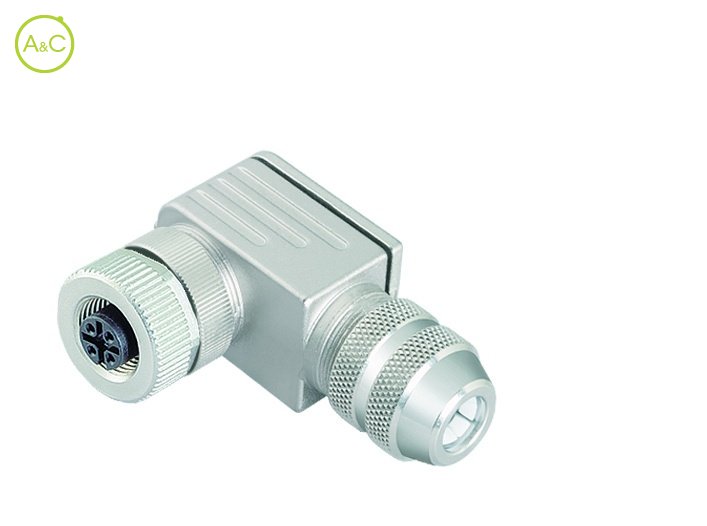

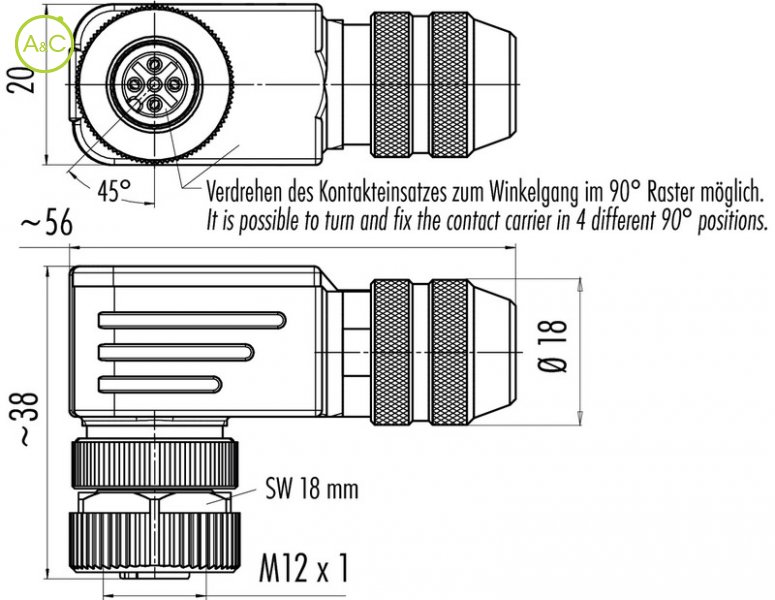

Female angled connector

  • Shieldable, with wire clamp connection, version with shielding ring

Number Of Poles

  • 4
  • 5
Article Number 99 1526 824 04 99 1526 822 04
Connector Diameter 20 mm 20 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Wire clamp Wire clamp
Wire Section 0.5 mm² 0.5 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing PBT, zinc diecasting nickel plated PBT, zinc diecasting nickel plated
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
