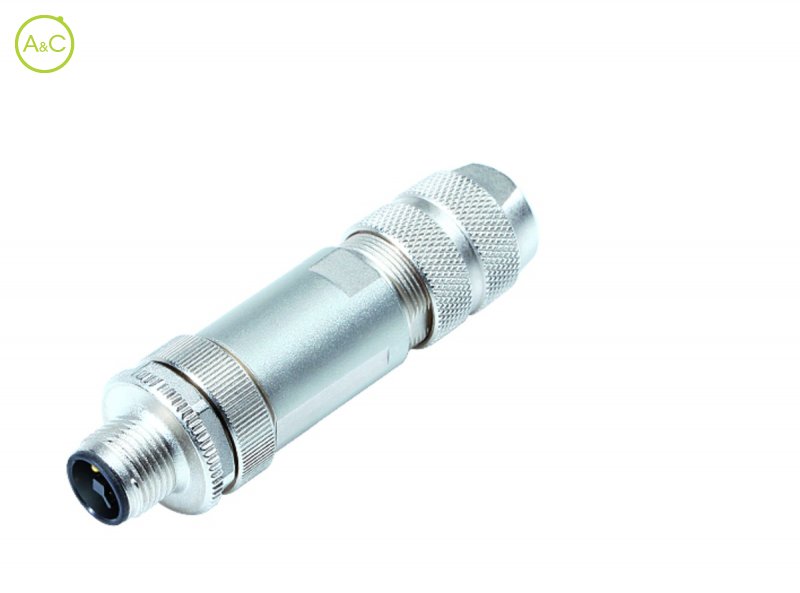

Male cable connector

  • Power, S-coding
  • Shieldable

Number Of Poles

  • 4
Article Number 99 1631 814 04 99 1631 812 04

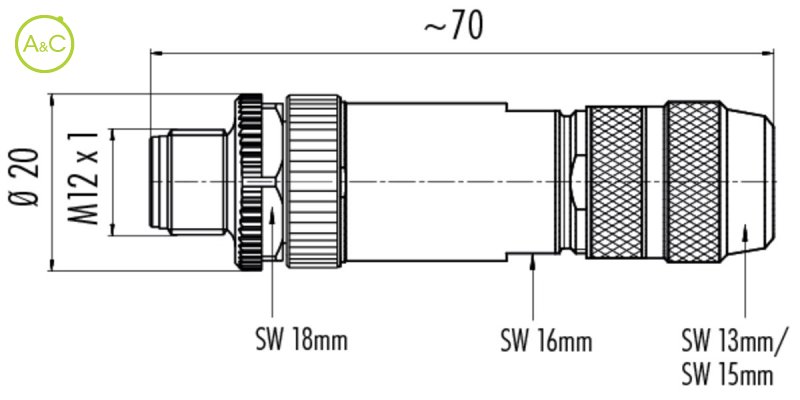

Connector Diameter 20 mm 20 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-T) Screw (M12-T)
Termination Removable screw Removable screw
Wire Section 1.5 mm² 1.5 mm²
Protection Degree IP67 IP67
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 63 63
Rated Impuls Voltage 1500 V 1500 V
Pollution Degree 3 3
Overvoltage Categorie III III
Material Group III III
Rated Current (40°) 12 A 12 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
