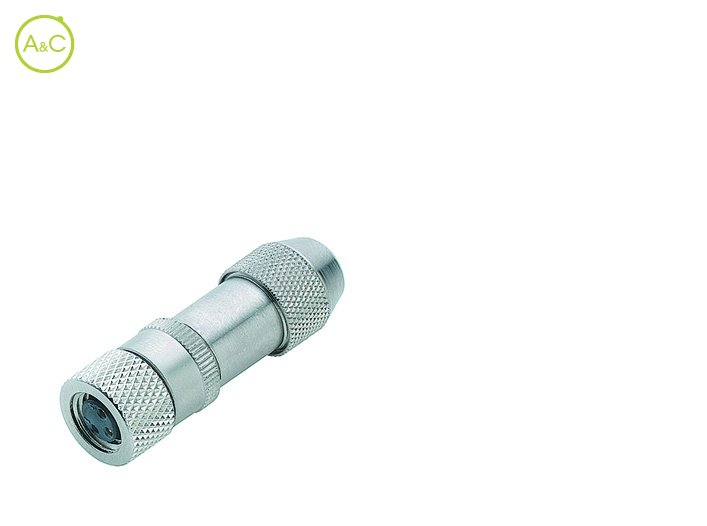

Female cable connector

  • Shieldable, solder

Number Of Poles

  • 3
  • 4
Article Number 99 3360 00 03 99 3360 25 03

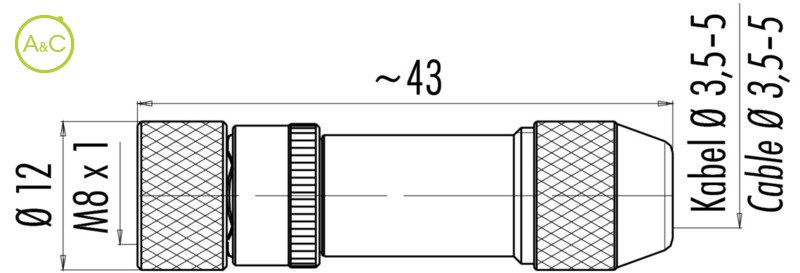

Connector Diameter 12 mm 12 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M8) Screw (M8)
Termination Solder Solder
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP67 IP67
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 60 60
Rated Impuls Voltage 800 V 800 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) / CuZn (Brass) CuSn (Bronze) / CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA (UL 94 HB) PA (UL 94 HB)
Material Of Housing CuZn (Brass) CuZn (Brass)
Cable Outlet 3,5-5 mm 2-3,5 mm
Wire Gauge 24 AWG 24 AWG
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
