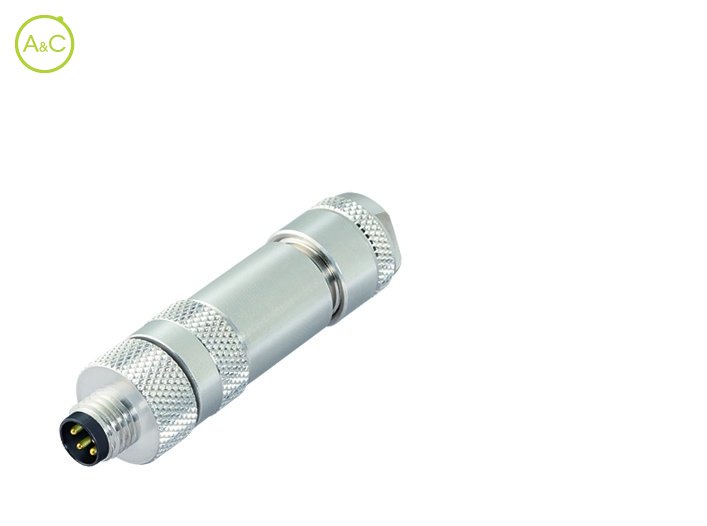

Male cable connector

  • Shieldable, screw clamp connection

Number Of Poles

  • 3
  • 4
Article Number 99 3361 100 03

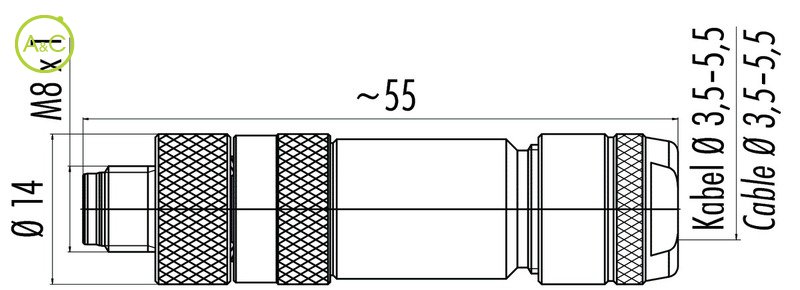

Connector Diameter 14 mm
Number Of Contacts 3 contacts
Connector Locking System Screw (M8)
Termination Screw
Wire Section 0,14 - 0,5 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 HB)
Material Of Housing CuZn (Brass nickel plated)
Cable Outlet 3,5-5,5 mm
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
