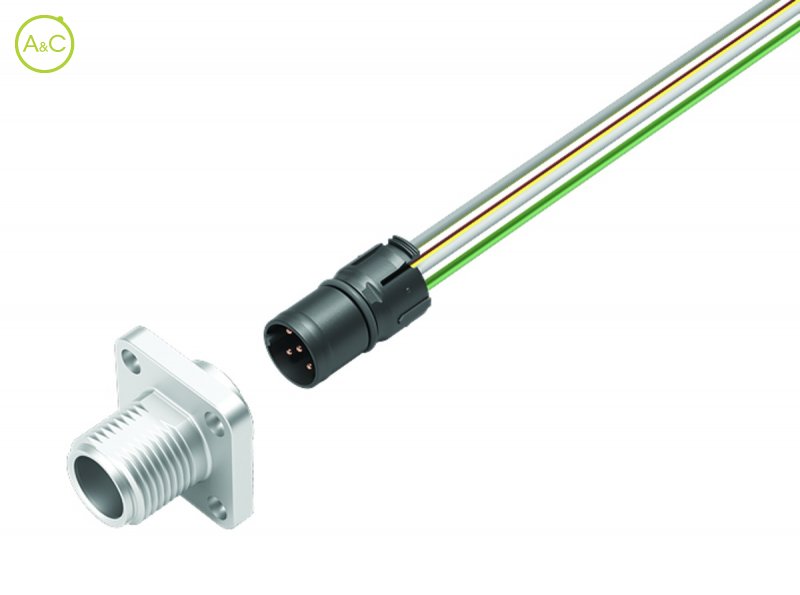

Male panel mount connector

  • Rectangular flange, positioning possible
  • Lockable

Number Of Poles

  • 4
  • 5
  • 8
Article Number 99 3433 100 04
Connector Diameter 12 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Single wires
Wire Section 0.25 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Brass nickel plated, Zinc die-cast nickel-plated
Wire Gauge 24 AWG
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
