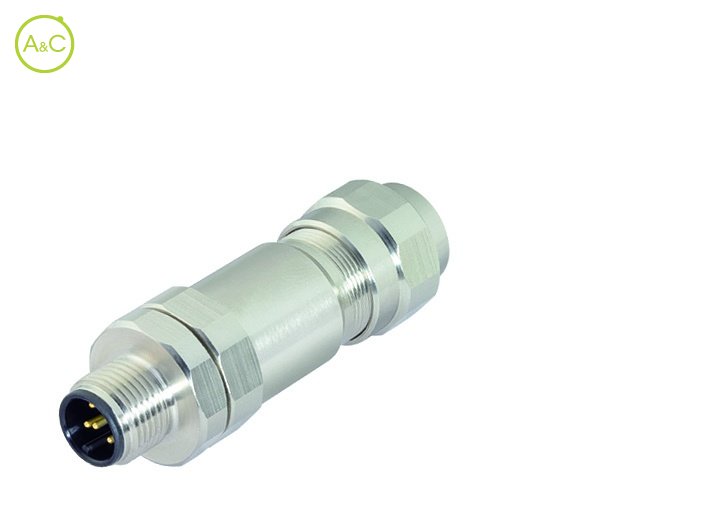

Male cable connector

  • Shieldable, screw termination, shielding ring, stainless steel version
  • UL-approval

Number Of Poles

  • 4
Article Number 99 3729 995 04
Connector Diameter 20 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-D)
Termination Screw
Wire Section 0.75 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Stainless steel 1.4404
Cable Outlet 5,5-8,6 mm
Product sheet Download product sheet
