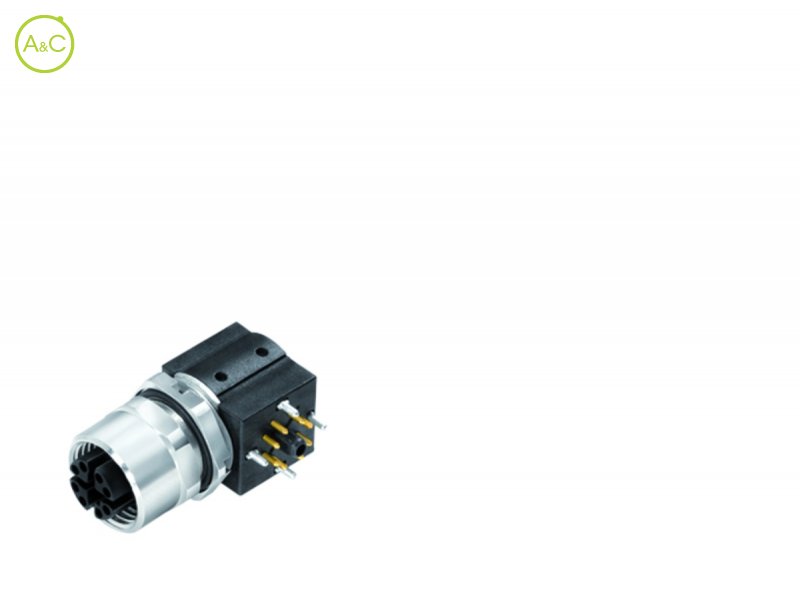

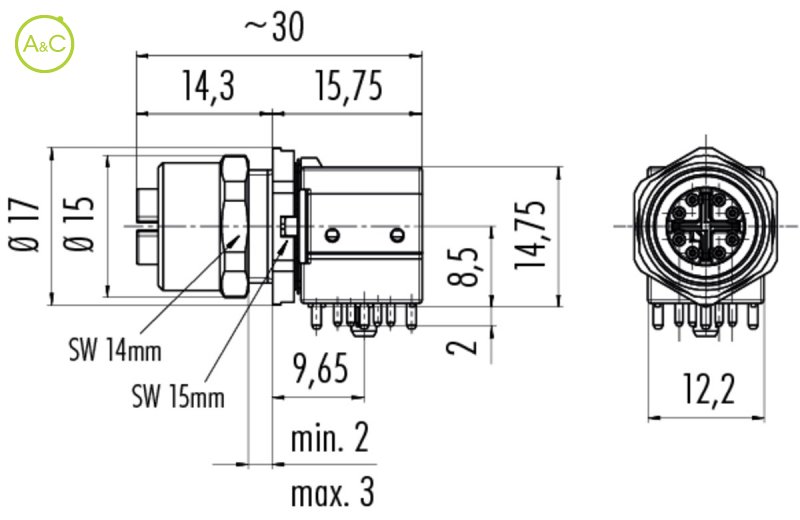

Female panel mount connector

  • Dip solder, angled
  • UL-approval

Number Of Poles

  • 8
Article Number 99 3782 213 08 99 3782 202 08
Connector Diameter 15 mm 15 mm
Number Of Contacts 8 contacts 8 contacts
Connector Locking System Screw (M12-X) Screw (M12-X)
Termination Dip solder Dip solder
Protection Degree IP67 IP67
Mating Cycles >50 times >50 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 50 V AC 60 V DC 50 V AC 60 V DC
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 0.5 A 0.5 A
Max. Contact Resistance 10 mΩ 10 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
