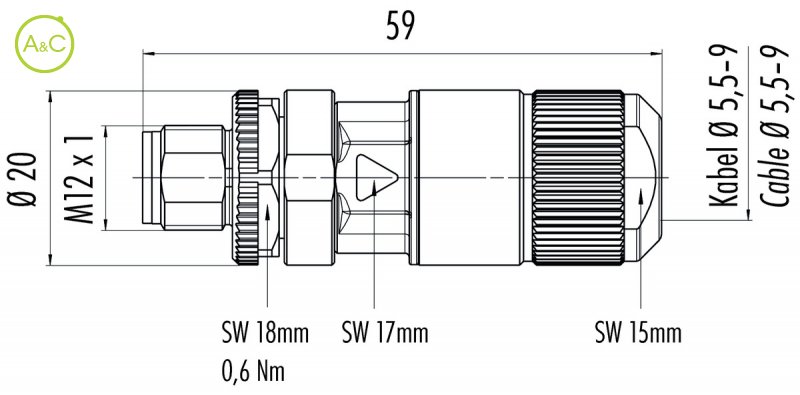

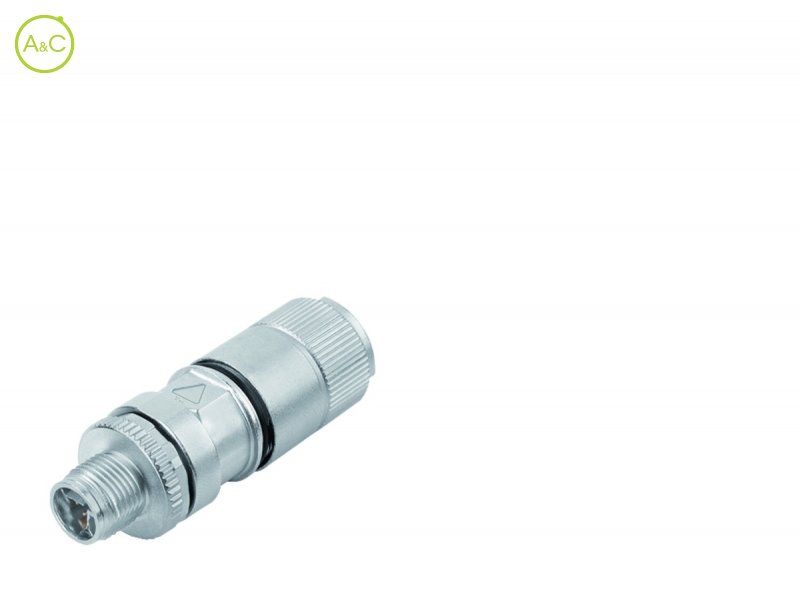

Male cable connector

  • with X-coding,shieldable, IDT connection

Number Of Poles

  • 8
Article Number 99 3787 810 08
Connector Diameter 20 mm
Number Of Contacts 8 contacts
Connector Locking System Screw (M12-X)
Termination Screw terminal
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 50 AC, 60 DC
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 0.5 A
Max. Contact Resistance 10 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Brass nickel plated / zinc diecasting nickel plated
Cable Outlet 5,5-9 mm
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
