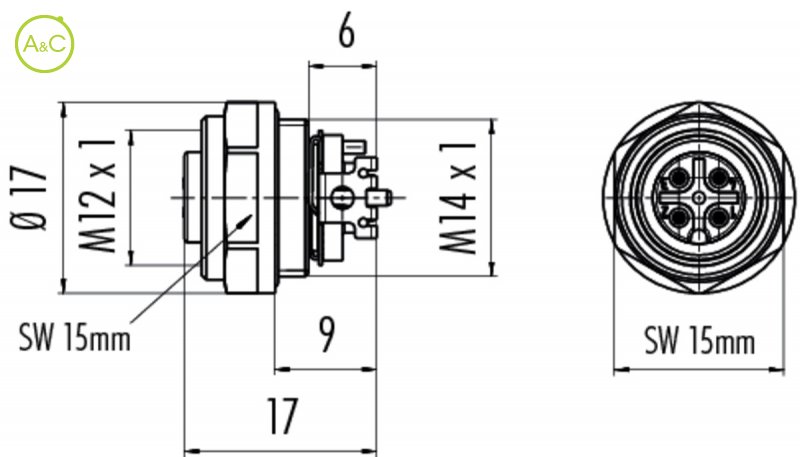

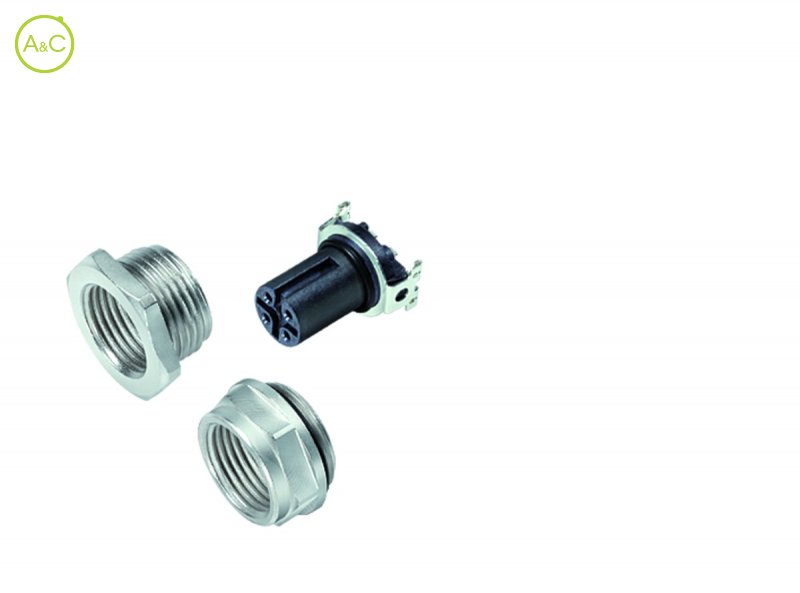

Female panel mount connector

  • SMT, with housing
  • Shieldable

Number Of Poles

  • 4
  • 5
Article Number 99 4432 401 04 99 4432 402 04
Connector Diameter 19 mm 19 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-B) Screw (M12-B)
Termination SMT SMT
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
