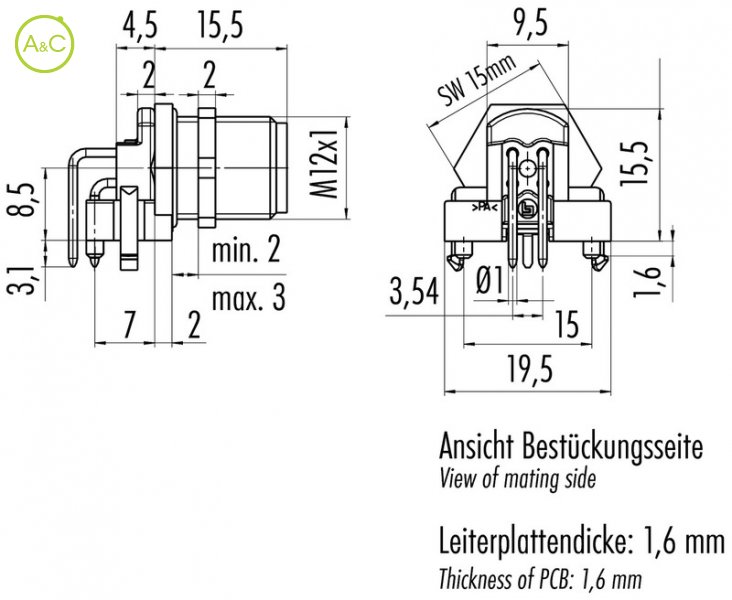

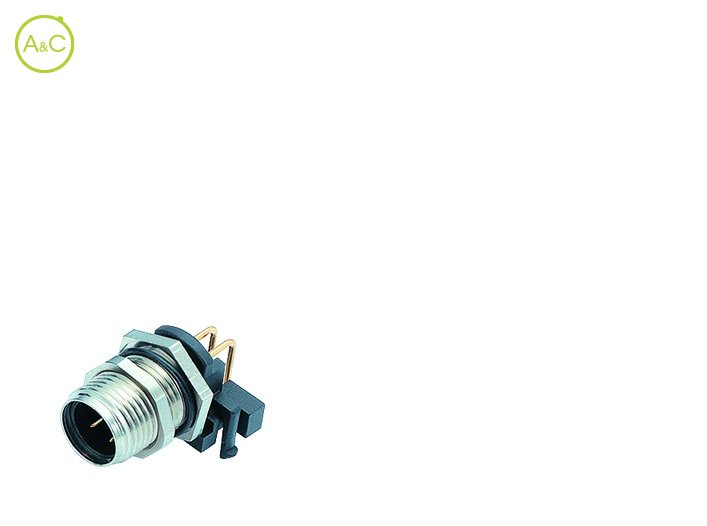

Male receptacle

  • for PCB assembly, angled
  • UL-approval

Number Of Poles

  • 5
  • 5 (with shielding sheet)
Article Number 99 4445 202 05
Connector Diameter 19.5 mm
Number Of Contacts 5 contacts
Connector Locking System Screw (M12-B)
Termination Dip solder
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing CuZn (Brass nickel plated)
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
