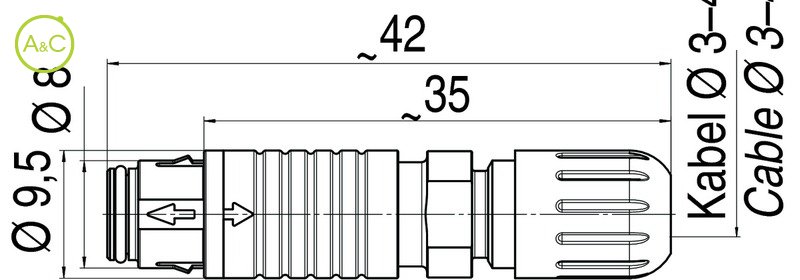

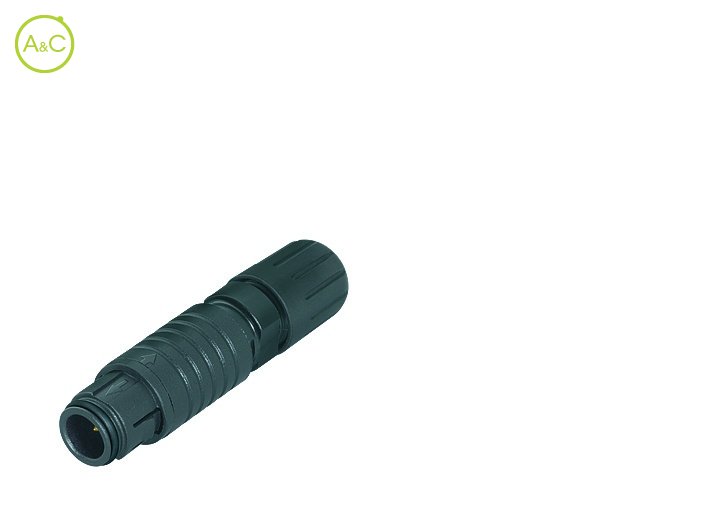

Male cable connector

Number Of Poles

  • 3
  • 4
  • 5
Article Number 99 4705 00 03
Connector Diameter 9.5 mm
Number Of Contacts 3 contacts
Connector Locking System Micro Push-Pull
Termination Solder
Wire Section 0.14 mm²
Protection Degree IP67
Mating Cycles >1000 times
Upper Temperature +80 °C
Lower Temperature -40 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 2
Overvoltage Categorie II
Material Group II
Rated Current (40°) 1 A
Max. Contact Resistance 8 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA
Cable Outlet 3-4 mm
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
