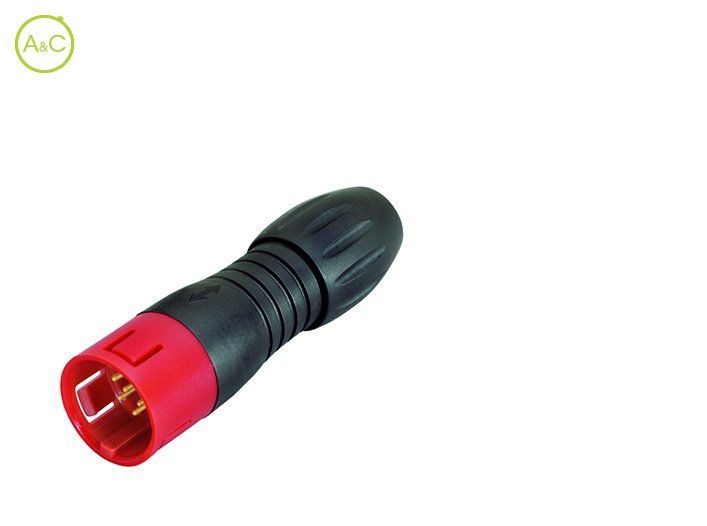

Male cable connector

  • Color code red

Number Of Poles

  • 3
  • 5
  • 8
  • 12
Article Number 99 9105 50 03

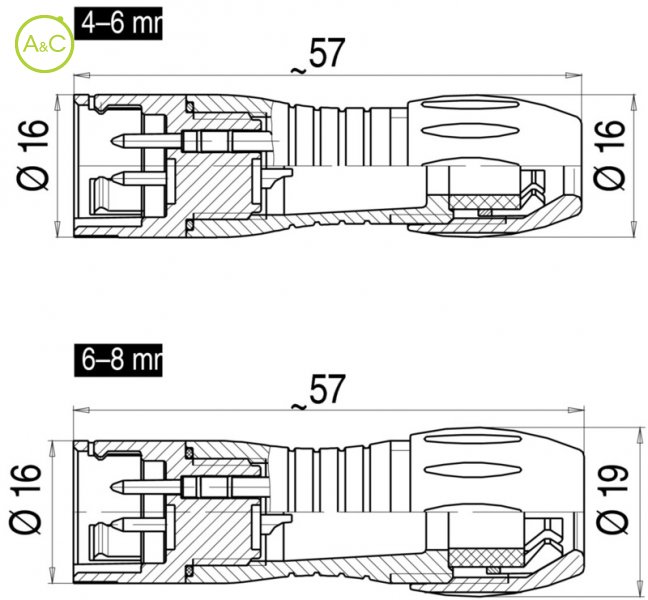

Connector Diameter 16 mm
Number Of Contacts 3 contacts
Connector Locking System Snap-in
Termination Solder
Wire Section 0.75 mm²
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 2
Overvoltage Categorie II
Material Group II
Rated Current (40°) 7 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 V-0)
Material Of Housing PA (UL 94 V-0)
Cable Outlet 4-6 mm
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
