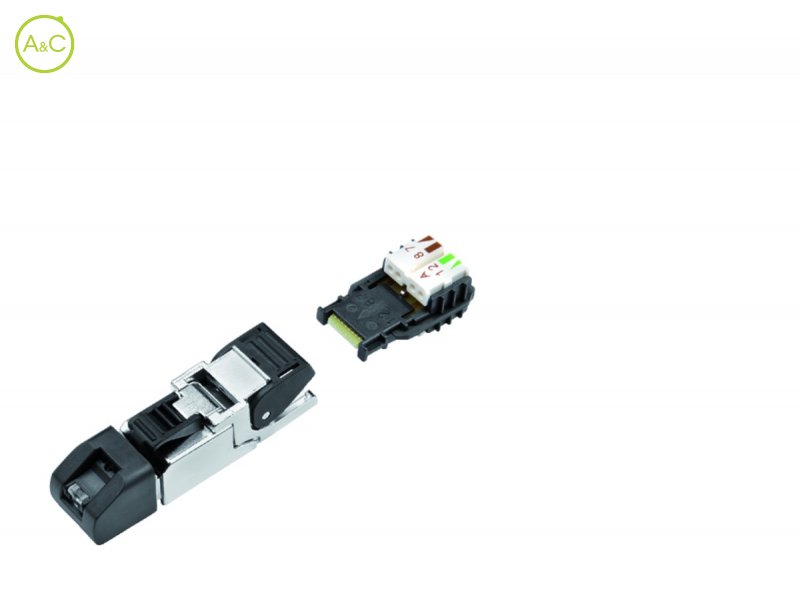

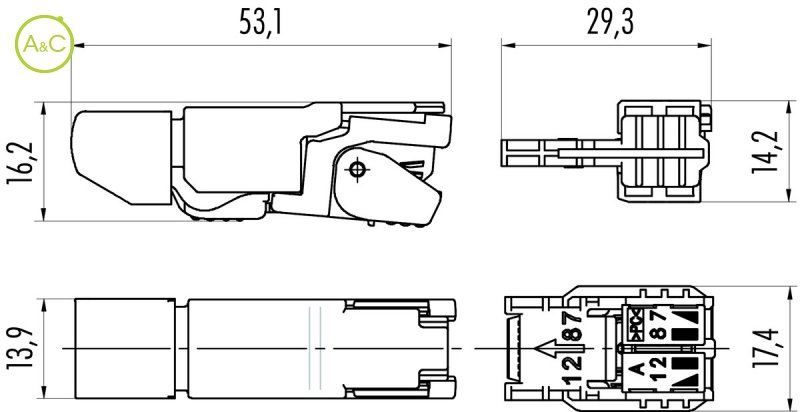

RJ45 male connector

  • Shieldable, CAT 6A

Number Of Poles

  • 8
Article Number 99 9687 805 08 99 9687 810 08
Number Of Contacts 8 contacts 8 contacts
Connector Locking System Snap-in lock Snap-in lock
Termination Penetration technology Penetration technology
Protection Degree IP20 IP20
Mating Cycles >750 times >750 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 50 DC 50 DC
Pollution Degree 2 2
Overvoltage Categorie III III
Material Group III a III a
Rated Current (40°) 1.3 A 1.3 A
Max. Contact Resistance 20 mΩ 20 mΩ
Material Of Contact Spring Steel Spring Steel
Plating Au (Gold) Au (Gold)
Material Of Insert PC PC
Material Of Housing Zinc diecasting nickel plated Zinc diecasting nickel plated
Cable Outlet 5-9 mm 5-9 mm
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
