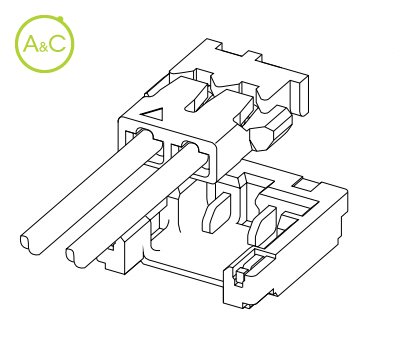

Housing for ACHL Connector

  • ACHL CONNECTOR
Download product sheet

Number Of Poles

  • 2
Article Number ACHLR-02V-S
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.2mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.20 mm
Rated Current (ac/dc) 2 (WG #28) A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Eigenschappen verschillen tussen varianten en subvarianten
This connector has a stacking height of 1.2mm and pitch of 1.2mm. In addition, in spite of being a compact and low profile connector, rated current is 2A with wire size AWG#28. It is possible to use the same crimping tool and applicator that is used for the ACH Connector. Top entry but side feed type Connector for power supply Corresponding to sucking nozzle of pick and place machine RoHS Compliant
