Female Terminal AWG 28 to 18

  • ATL CONNECTOR
Download product sheet

Applicable Wire

  • AWG 18 to 28
  • AWG 22 to 20
Article Number SAIT-A02GF-M064 SAIT-A02T-M064
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
General Description 2.54mm Pitch Disconnectable Crimp Style 2.54mm Pitch Disconnectable Crimp Style
Applicable Wire Size 0.75 to 0.08 (AWG #18 to #28) mm² 0.75 to 0.08 (AWG #18 to #28) mm²
Connection Type Automotive Automotive
Pitch / Style 2.54 mm 2.54 mm
Rated Current (ac/dc) 5 A 5 A
Rated Voltage (ac/dc) 14 V 14 V
Pcb Mount Style Through-hole Technology (THT) Through-hole Technology (THT)
Eigenschappen verschillen tussen varianten en subvarianten

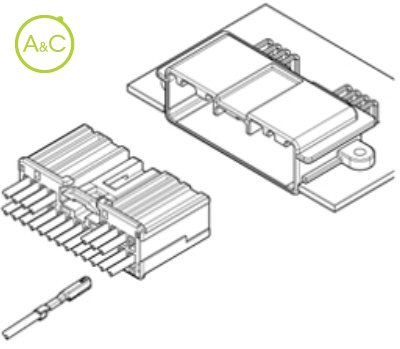

The ATL is an unsealed 2.54mm pitch wire to board connector, which has been primarily designed for control units for Electric and Hybrid Vehicles. Available in 3 colours and 4 key code options, this connector system features a unique PCB mounting design. That is, the right angle through hole header mounts within and not on top of the printed circuit board, therefore reducing the height to 10mm above the board. The header design also incorporates pin location holes that contribute to its location and strength on the PCB. Available in 21 circuits, the dual row connector utilises the traditional 0.64 terminal systems, which offers optimum electrical performance and is available with gold plating, therefore offering excellent conductibility and durability. The female housing features a TPA (Terminal Position Assurance) that provides increased terminal retention. 21 circuits: 0.64 unsealed connector Unique PCB mounting side entry design Low profile Variety of colours and key coding options available RoHS Compliant
