Top Entry Locking Header THT

  • VT CONNECTOR
Download product sheet

Number Of Poles

  • 2
Article Number B02B-VT
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 11.88mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 11.88 mm
Rated Current (ac/dc) 12 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Remark Secure locking device
Eigenschappen verschillen tussen varianten en subvarianten

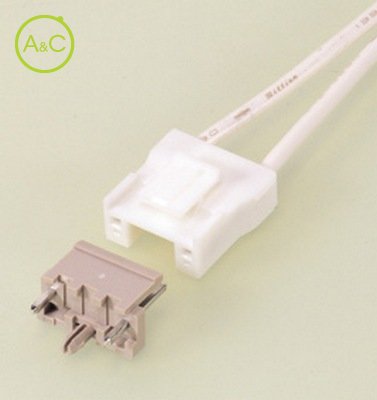

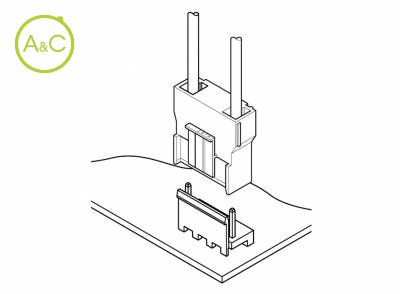

The VT connector is a 11.88mm (.468") pitch diSConnectable crimp style connector with current rating of 12A. It has features such as the PC board locking device, misinsertion preventative construction and arm-lock mechanism. It's header is applicable to reinforced PC boards with eyelets. Connectable to vinyl insulated flat cables Can be connected to vinyl insulated flat cables (such as SPT, HVFF) ranging from AWG #20 to 16 which are used for primary sides of power circuits. Use of PC board locking device PC board locking device makes temporary mounting and correct positioning onto the board easy. Correct and secure mating Correct and secure mating thanks to the misinsertion preventative construction and arm-lock mechanism. Applicable to reinforced PC boards with eyelets Header is designed to be applicable to reinforced PC boards with eyelets. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R9151561 RoHS Compliant
