JST
Number Of Poles
- 2
- 3
- 5
- 6
- 7
- 8
- 10
- 11
- 12
- 14
- 15
- 16
- 17
- 18
- 20
| Article Number | B2PS-TB-7 |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | B3PS-TB-2 |
| Number Of Contacts | 3 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | B5PS-TB-16 | B5PS-TB-2 | B5PS-TB-33 |
| Number Of Contacts | 5 | 5 | 5 |
| Upper Temperature | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Header | 2.5mm Pitch Header | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Article Number | B6PS-TB-1 | B6PS-TB-16 | B6PS-TB-2 | B6PS-TB-33 |
| Number Of Contacts | 6 | 6 | 6 | 6 |
| Upper Temperature | +85 °C | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Header | 2.5mm Pitch Header | 2.5mm Pitch Header | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Article Number | B7PS-TB-16 | B7PS-TB-33 | B7P-TB-21 |
| Number Of Contacts | 7 | 7 | 7 |
| Upper Temperature | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Header | 2.5mm Pitch Header | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Article Number | B8PS-TB-2 | B9PS-TB-2 |
| Number Of Contacts | 8 | 8 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Header | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Article Number | B10PS-TB-1 | B10PS-TB-33 |
| Number Of Contacts | 10 | 10 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Header | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Article Number | B11PS-TB-1 | B11PS-TB-2 |
| Number Of Contacts | 11 | 11 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Header | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Article Number | B12PS-TB-2 |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | B14PS-TB-2 |
| Number Of Contacts | 14 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | B15PS-TB-2 |
| Number Of Contacts | 15 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | B16PS-TB-2 |
| Number Of Contacts | 16 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | B17P-TB-30 |
| Number Of Contacts | 17 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | B18PS-TB-2 |
| Number Of Contacts | 18 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | B20PS-TB-2 |
| Number Of Contacts | 20 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Eigenschappen verschillen tussen varianten en subvarianten

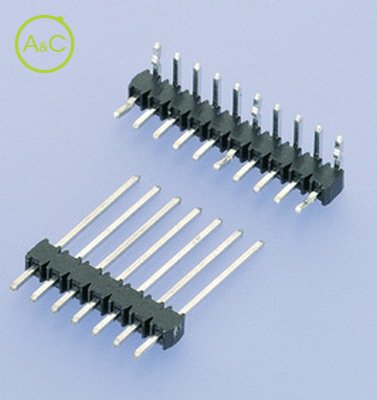

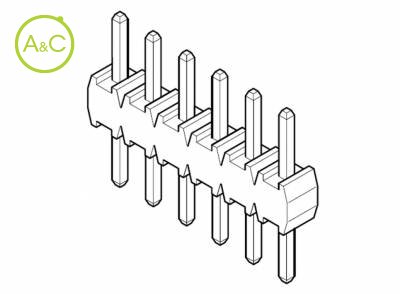

This header, measuring 2.5mm (.098") in pitch, can be easily cut into any required length.
Thus, only one size needs to be stocked for prototyping and preproduction purposes.
Standards
UL Recognized E60389
RoHS Compliant
