Socket Housing

  • BHT CONNECTOR
Download product sheet

Number Of Poles

  • 2
Article Number BHTR-02VS
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C

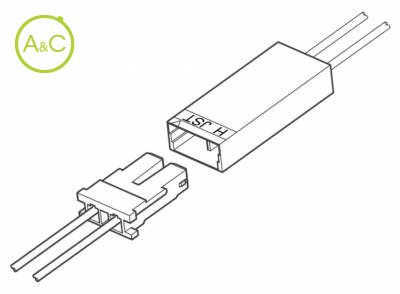

General Description 5.1mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type Wire to Wire Connectors
Pitch / Style 5.10 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 1,5 V
Eigenschappen verschillen tussen varianten en subvarianten

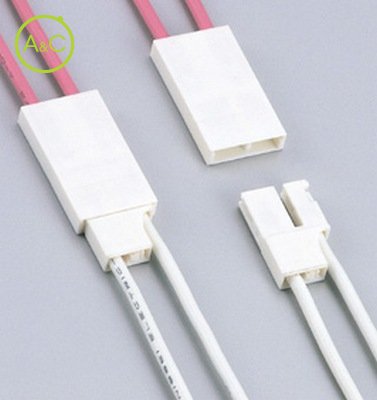

Connector for liquid crystal display back light lamps. High voltage With enough creep distance at the high voltage side, voltage rating can be as high as 1,500V. Applicable either to wire-to-wire connection or board-to-wire connection Socket housing is commonly used for wire-to-wire version and for board-to-wire version BHT series. Pin contact is the same as that for the wire-to-wire BHS connector. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
