Top Entry Shrouded Header SMT

  • SR/SZ CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
Article Number BM02B-SRSS-TB
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1mm Pitch Disconnectable IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.00 mm
Rated Current (ac/dc) 0.7 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT) Through-hole Technology (THT)
Eigenschappen verschillen tussen varianten en subvarianten

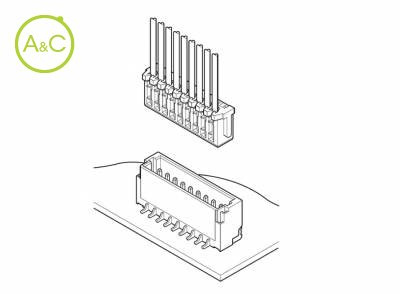

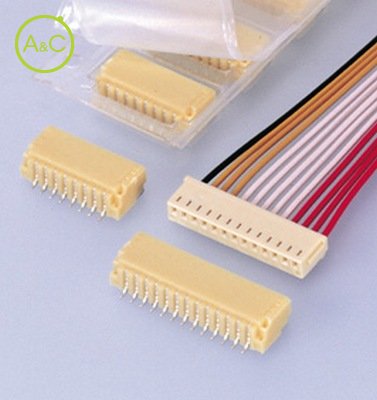

Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment. Compact insulation displacement connector 1.0mm (.039") pitch and only 3.0mm (.118") high (side entry type). This connector is only about 61% as large as the smallest conventional (JST) IDC designs. Header designed for vacuum pick and place robotics Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment. Since there is enough flat suface for secure vacuum gripping, this miniature surface mount connector is versatile for designers and economic for manufacturing. Twin U-slot insulation displacement section The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection. 3-point grip construction The 3-point insulation grip feature and the strain relief ensure a firm grip on terminated wires and protection of the insulation displacement connection from possible damage. Through-hole type (SZ) Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
