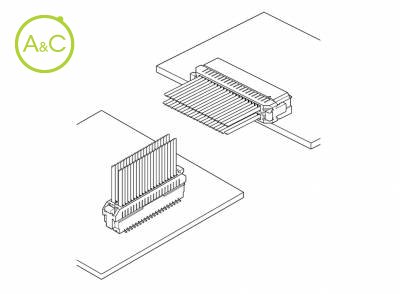

Top Entry Shrouded Header SMT

  • SHLD CONNECTOR
Download product sheet

Number Of Poles

  • 20
  • 30
  • 40
  • 50
Article Number BM20B-SHLDS-G-TFT
Number Of Contacts 20
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.0mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.00 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Eigenschappen verschillen tussen varianten en subvarianten

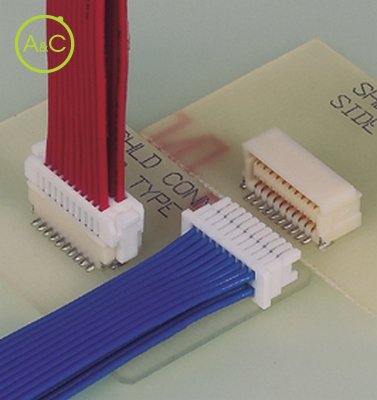

Designed for use in Plasma Display Panels (PDP), Liquid Crystal Displays (LCD) and other small electronics equipment. This 1.0mm pitch dual row connector has secure locking features and strong structural characteristics that make it ideal for compact and challenging applications. The PC board layout is also compatible with that of our SHD/SRD connectors, which allows for replacement of existing JST connectors. Secure housing lock structure (for locking type) Innovative designs of the arm and lock device achieve a secure locking structure, which also realises a space saving feature. In order to realise more space saving, housing without secure locking system is available. Preventative deformation of contacts The spring property of the header housing and pin-shaped contacts prevent deformation during harness manufacturing. A contact lock structure A contact lock provides a good 'click feeling' when mated (even without a housing lock), which prevents improper mating during assembly. Strong structure against external force Thicker housing walls of the header prevent deformation. Standards UL Recognized E60389 RoHS Compliant
