Branch AWG 22 to 14

  • CL CONNECTOR
Download product sheet

Applicable Wire

  • AWG 18 to 14
  • AWG 22 to 18
Article Number CL-1814T
Upper Temperature 105 Max °C
General Description Insulation Displacement
Applicable Wire Size 0.75 to 2.0 (AWG #18 to #14) mm²
Connection Type Wire to Wire Connectors
Rated Current (ac/dc) 7.0 15 A
Rated Voltage (ac/dc) 300 V
Eigenschappen verschillen tussen varianten en subvarianten

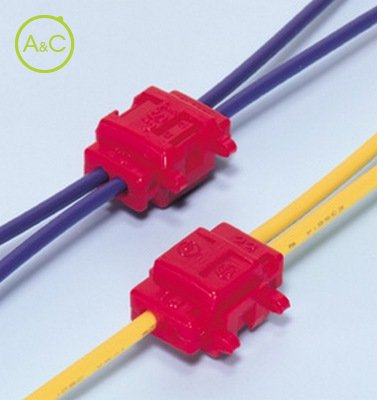

The CL is a low-voltage, insulation displacement connector that can be applied using simple tools. A simple operation completes this insulation displacement splice Wire conductors can be securely connected to the internal fork-shaped contacts of this connector by simply pressing the connector housing halves together with pliers. It is not necessary to strip the wires or to use special tools. Superior insulation performance The connector housing provides a highly effective insulation, and no further insulating operations are necessary. Temporary wire holding mechanism A temporary wire holding mechanism prevents the wire from moving or being improperly connected during wire connection. Standards UL Listed E42024 CSA Certified LR20812 EC directive 2002/95/EC (the RoHS Directive) - Compliant
