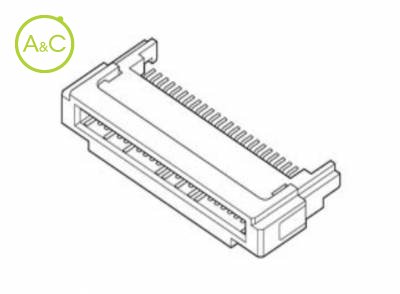

Female Connector for Express Card Connector

  • EXPRESS CARD CONNECTOR
Download product sheet

Color

  • Black
  • Gray
Article Number EX-M26S-152-A121 EX-M26S-152-A220 EX-M26S-152-A222 EX-M26S-152-C222
Number Of Contacts 26 26 26 26
Upper Temperature +55 °C +55 °C +55 °C +55 °C
General Description Express Card Connector (1.0mm Pitch) Express Card Connector (1.0mm Pitch) Express Card Connector (1.0mm Pitch) Express Card Connector (1.0mm Pitch)
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 1.00 mm 1.00 mm 1.00 mm 1.00 mm
Rated Current (ac/dc) 0.75 /line A 0.75 /line A 0.75 /line A 0.75 /line A
Pcb Mount Style Surface Mount Technology (SMT) Surface Mount Technology (SMT) Surface Mount Technology (SMT) Surface Mount Technology (SMT)
Remark Frame mounting type: upper side Off-set size: 0.1 Frame mounting type: upper side Off-set size: 0.3 Frame mounting type: upper side Off-set size: 0.08 Frame mounting type: buttom side Off-set size: 0.08
Eigenschappen verschillen tussen varianten en subvarianten
This is the module connector for the Express Card complying with Express Card Standard Ver.1.0. Complying with PCMCIA Express Card Standard Ver.1.0 This modular connector complies with PCMCIA Express Card Ver.1.0. which has been standardized as next generation of PC Card. It is registered as the Compliant Product in Web site of Express Card. Compliance ID: EC100017 Excellent durability In order to protect the mating pins at CF card side, the shutter locking mechanism is adopted. Variation According to the customer's requirement, the off-set of connector solder tails is enabled. RoHS Compliant
