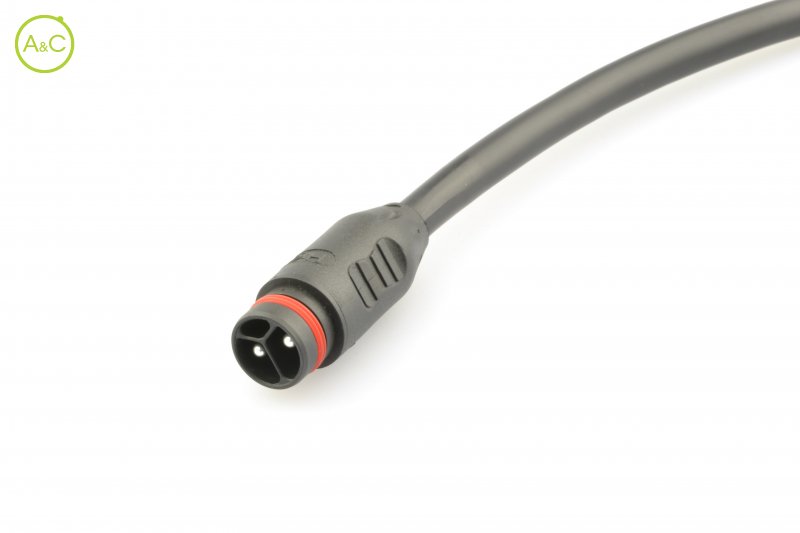

Male cable connector

  • Push-on flexible

Number Of Poles

  • 6 (2+4)
Article Number F618AG P 00 GN 1000
Color Black
Connector Diameter 18 mm
Wire Section 2 x 3,3 + 4 x 0,2 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper alloy
Cable Diameter 8 mm
Insulation Wire FEP
Remark Other cable length/type on request
Rated Current 30 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Silver plated
Fitting Length 40 mm
Material Jacket PVC
Eigenschappen verschillen tussen varianten en subvarianten
