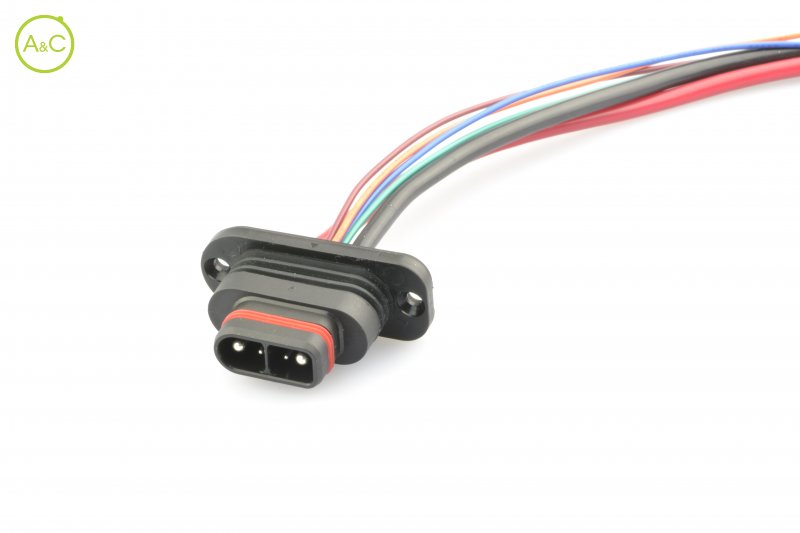

Male panel mount connector

  • Push-on flexible

Number Of Poles

  • 6 (2+4)
Article Number F621AG C 00 GA 0300
Color Black

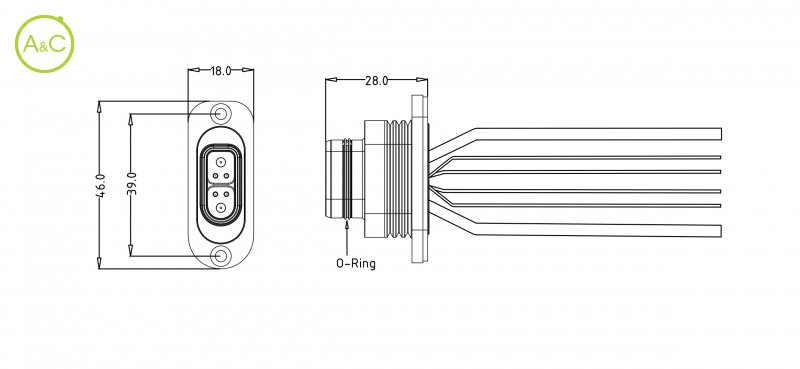

Connector Diameter 46,0 x 18,0 mm
Wire Section 2 x 3,3 + 4 x 0,2 mm²
Cable Length 300 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 30 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Silver plated
Eigenschappen verschillen tussen varianten en subvarianten
