Socket contact AWG 22 to 18

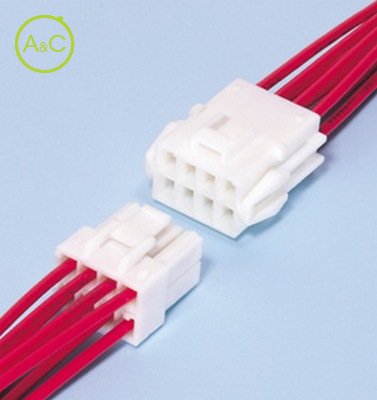

  • HL CONNECTOR
Download product sheet

Applicable Wire

  • AWG 22 to 18
Article Number SSF-21T-P1.4
Upper Temperature +90 °C
Lower Temperature -25 °C
General Description 3.96mm Pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size 0.3 to 0.75 (AWG #22 to #18) mm²
Connection Type Wire to Wire Connectors
Pitch / Style 3.96 mm
Rated Current (ac/dc) 7.0 A
Rated Voltage (ac/dc) 300 V
Remark Secure locking device
Eigenschappen verschillen tussen varianten en subvarianten

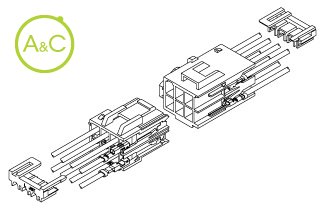

Housing lock designed to prevent tangling with wires and accidental breakage because of handling. Low insertion force contact The low insertion force contacts reduce surface finish wear and reduce the effects of stress relaxation. Housing lance The resilient plastic housing lances secure the contacts in the housings. Since the lances are in the housings rather than on the contacts, they are not affected by handling, and allow the contacts to be lightly inserted without undue force. This establishes a feeling of uniform insertion and a noticeable change in that feeling when insertion is completed. Inner-housing lock This inter-housing lock secures the plug to the receptacle and prevents accidental diSConnection. The lock is protected and is not affected by external forces that might result from the routing of wires. Secondary retainers The secondary retainers enhance safety in case of partial insertion or accidental release of the contact. Even if a contact is inserted incompletely, the retainer guides the contact to the proper position and securely locks it in place. Panel lock construction Our unique compact panel lock is designed to prevent tangling with wires and accidental breakage because of handling. Standards UL Recognized E60389 CSA Certified LR20812 TUV R9551072 RoHS Compliant
