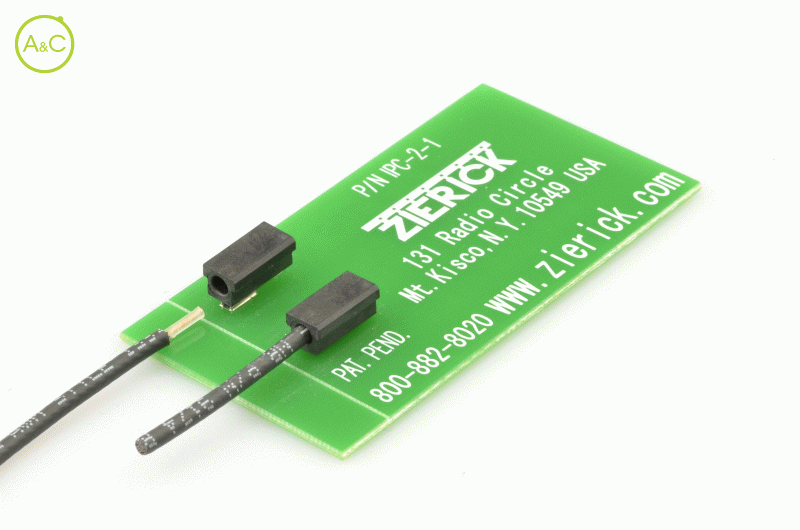

Surface mount insulation piercing crimp terminal for coaxial cable

  • Designed for RG174/U or RG 316/U coaxial cable
  • General
Article Number IPC-2-1-T
Contact Material C26000 Brass
Packaging Taped
Standard Finish Matte Tin over copper
Current Rating 2 amperes
Crimping System WTW-IPC-2-1
Insulation Material PPS
Wire Size Designed for RG174/U or RG 316/U coaxial cable
Vswr 1.5:1 (at 2 GHz) and 1.6:1 (at 3 GHZ)
Loss Db under 0.50 (at 2 GHz)
Product sheet Download product sheet
