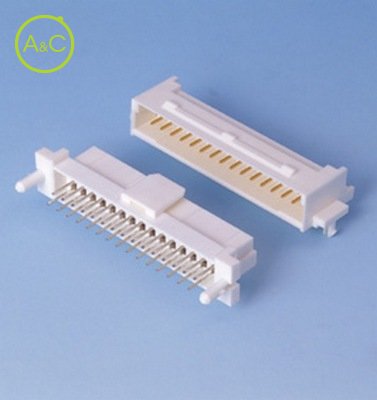

Receptacle Metal hook type

  • JDV CONNECTOR
Download product sheet

Number Of Poles

  • 20
  • 25
  • 30
  • 35
  • 40
  • 50
  • 65
Article Number JDV-R20LB-10A
Number Of Contacts 20
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.50 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Through-hole Technology (THT)
Eigenschappen verschillen tussen varianten en subvarianten

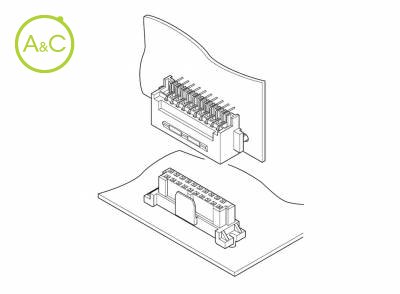

The JDV connector is designed for board-to-board connection with locking device, and highly resistant to equipment vibration and shock. Two type Locking device Both secure lock and friction lock connectors are available. Staggered Solder Tails Flexibility is given to the design of PC Board with this staggered solder tails. Positioning boss (projection) The positioning bosses having the temporary retention lock mechanism are prepared in order to make mounting on PC. Board easy. The JDV connector with solder tab is available. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
