Receptacle Strip Contact AWG 28 to 14

  • JFA CONNECTOR J300 Series J-FAT
Download product sheet

Applicable Wire

  • AWG 16 to 14
  • AWG 20 to 16
  • AWG 24 to 20
  • AWG 28 to 24
Article Number SF3F-002GF-P2.0 SF3F-002GI-P2.0 SF3F-002T-P2.0
Upper Temperature +105 °C +105 °C +105 °C
Lower Temperature -55 °C -55 °C -55 °C
General Description 5.08mm Pitch Disconnectable Spring Terminal Connector 5.08mm Pitch Disconnectable Spring Terminal Connector 5.08mm Pitch Disconnectable Spring Terminal Connector
Applicable Wire Size 0.08 to 0.20 (AWG #28 to #24) mm² 0.08 to 0.20 (AWG #28 to #24) mm² 0.08 to 0.20 (AWG #28 to #24) mm²
Connection Type Factory Automation Connectors Factory Automation Connectors Factory Automation Connectors
Pitch / Style 5.08 mm 5.08 mm 5.08 mm
Rated Current (ac/dc) Depends on pplicble wires A Depends on pplicble wires A Depends on pplicble wires A
Rated Voltage (ac/dc) 300 V 300 V 300 V
Eigenschappen verschillen tussen varianten en subvarianten

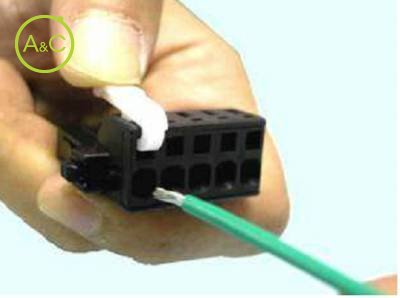

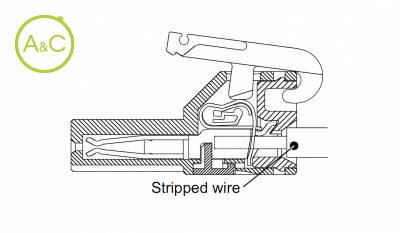

Terminal Free Connector. The J-FAT-S-i series connector offers advantages over conventional 'crimp and poke' connectors, as the wire is simply stripped and pushed into the connector without the need to crimp a terminal onto the wire prior to insertion. Terminal free connector The connector features an internal spring lock mechanism which removes the need to have a separate crimp terminal. Just strip the wire and insert it into the connector, whilst deflecting the locking spring with the finger friendly hand tool; J-FAT-OT Intermateability This connector is interchangeable and mates with the JST JFA (J300 Series) Connector. Key options X and Y key options available. High Durability The J-FAT-S-i connector has been designed and manufactured to withstand 100 insertion / withdrawal cycles. Excellent contact reliability The internal locking spring has been developed to provide a gas tight and reliable interface between the wire the connector. Relative high current This connector has a current rating of 12A, when using AWG # 14 wire in combination with the 3 circuit variation of this product. Note, The actual current value is dependent on the number of circuits and the wire. Standards UL Recognized E239668 (J-FAT-S-i) RoHS Compliant
