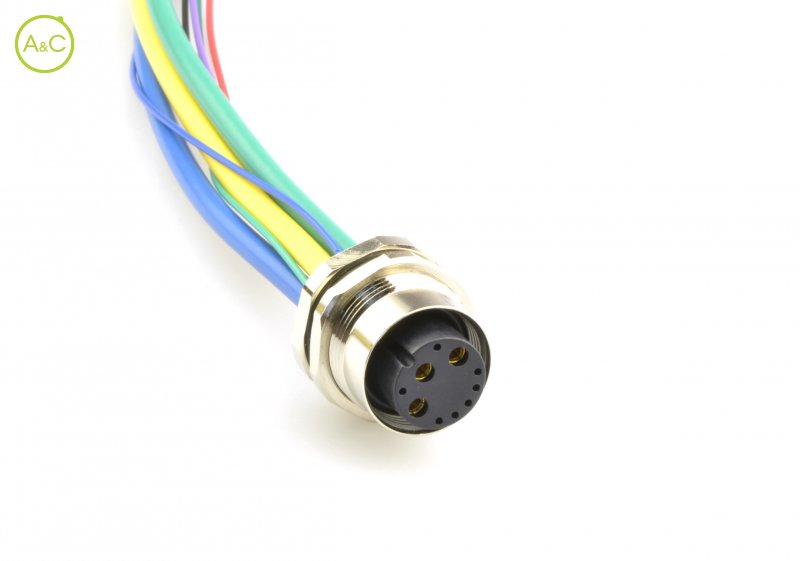

Female rear panel mount connector

Download product sheet

Number Of Poles

  • 10 (3+7)
Article Number L1019AM R 03 DQ 0300
Color Silver
Connector Diameter 24 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Remark Other cable length/type on request
Rated Current 30 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Eigenschappen verschillen tussen varianten en subvarianten
