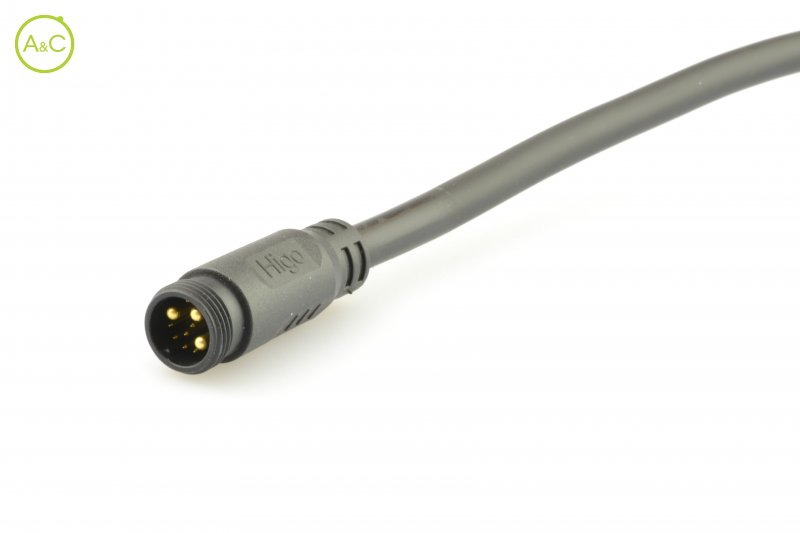

Male cable connector

Number Of Poles

  • 11 (3+8)
Article Number L1114AG P 00 FF 1000
Color Black

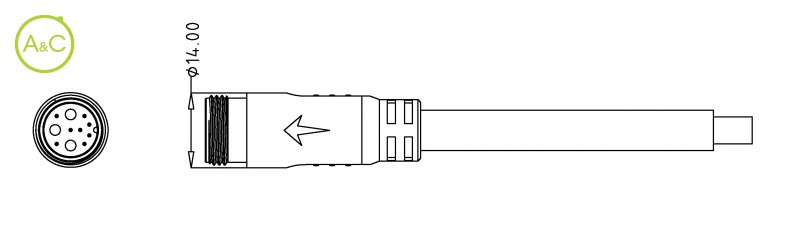

Connector Diameter 14 mm
Wire Section 3 x 2,0 + 8 x 1,4 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Insulation Wire FEP
Remark Other cable length/type on request
Rated Current 20 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Silver over Nickel
Fitting Length 80 mm
Material Jacket PVC
Eigenschappen verschillen tussen varianten en subvarianten
