JST
Number Of Poles
- 4
| Article Number | LC-04T |
| Number Of Contacts | 4 |
| Upper Temperature | +90 °C |
| Lower Temperature | -25 °C |
| General Description | 5.08mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 5.08 mm |
| Rated Current (ac/dc) | 5 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Eigenschappen verschillen tussen varianten en subvarianten

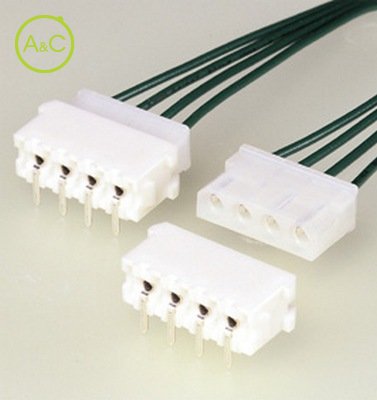

The LC connector is for the secondary power circuit used in the office automation equipment, such as the 3.5" HDD and MO, including the DVD.
This low-profile crimp type connector is designed to meet further miniaturization of the equipment.

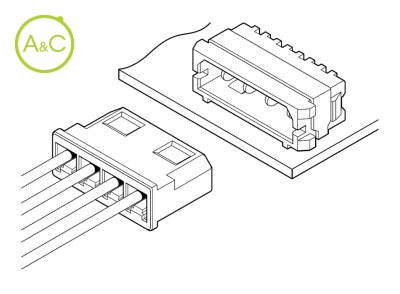

The plug housing can also be mated with our LC connector (top and side entry types) and the power connection part of the LK connector.
Space-saving
The miniaturization (improved from 20.5mm (.807") to 13.5mm (.531") height) realizes radical space saving after mating and consequently will provide more space for wiring.
Lower insertion force
Insertion and withdrawal force are reduced by 40 to 50% compared to the existing type.
Double-crimping contact
For an internal branching or jumper connection, a double-crimping type contact is adopted.
RoHS Compliant
