JST
Number Of Poles
- 2
| Article Number | LEAR-02V-S |
| Number Of Contacts | 2 |
| Upper Temperature | +105 °C |
| Lower Temperature | -55 °C |
| General Description | LED Connectors (1.8mm Pitch Disconnectable Crimp Style) |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.80 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 300 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Eigenschappen verschillen tussen varianten en subvarianten

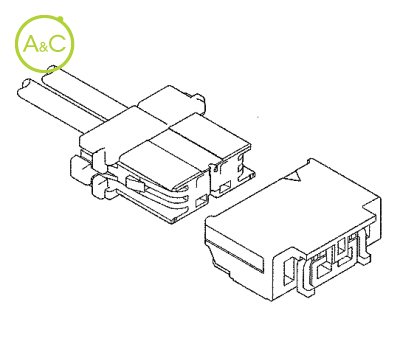

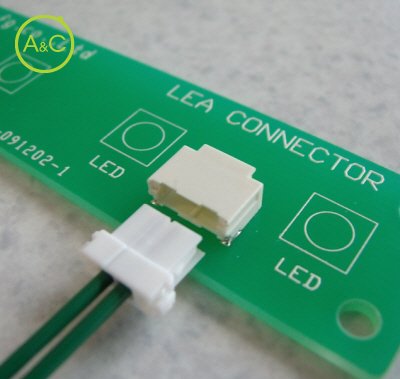

LED Connectors - The LEA Connector is a low profile, surface mount (SMT), LED Connector to be used in LED light strips, LED light controls and other general lighting and LED applications.
This is a diSConnectable type LED Connector with a secure locking connection which incorporates a space saving and low profile design for your LED circuit board.
This LED Connector is available in 2 circuits with a 3A / 300V current and voltage rating.
LED Connector
Secure locking mechanism
Low Profile design
Countermeasure for inverse insertion
Contact lance
RoHS Compliant
