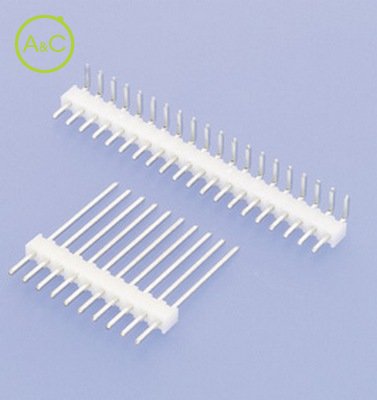

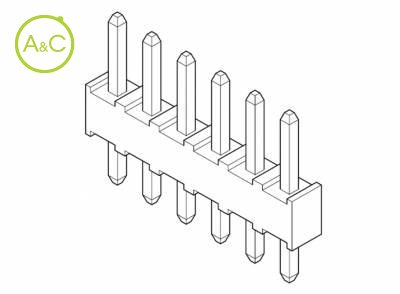

Side Entry Header (THT)

2.5SB HEADER

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Total Height

7.6 mm
8.3 mm
8.8 mm
9.7 mm

Article Number	MB(*)P-90-2
Number Of Contacts	2-20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark *	The number of circuits (2 to 20) should be inserted in (*)

Article Number	MB(*)P-90S
Number Of Contacts	2-20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark *	The number of circuits (2 to 20) should be inserted in (*)

Article Number	MB(*)P-90
Number Of Contacts	2-20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark *	The number of circuits (2 to 20) should be inserted in (*)

Article Number	MB(*)P-90H
Number Of Contacts	2-20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark *	The number of circuits (2 to 20) should be inserted in (*)

Eigenschappen verschillen tussen varianten en subvarianten

The SB headers can be used to connect any 2.5mm (.098") receptacles to printed circuit boards. They can also be used to directly connect PC boards. They come in pitches of 2.5mm (.098") and in both top entry and side entry type models. 2.54mm (.100") pitch SB headers are also available. In addition, 2.0mm (.079") pitch BC headers are available. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
