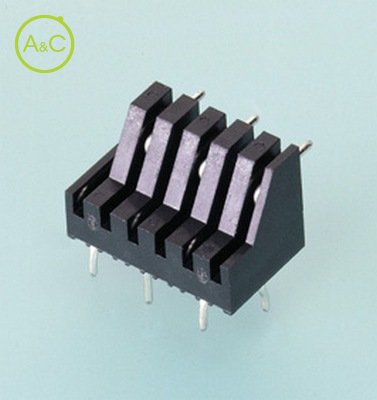

Header for MBS HEADER

  • MBS HEADER
Download product sheet

Number Of Poles

  • 6
  • 8
Article Number MBS06P-1T
Number Of Contacts 6
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Eigenschappen verschillen tussen varianten en subvarianten

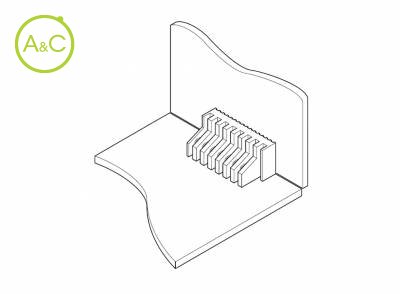

The MBS headers can be used to directly connect PC boards. The staggered pins improve the mechanical strength of the daughter card restraining system. The MBS header is supplied radial-taped for automatic mounting. Tape specifications conform to JIS standards The tape specifications for this header conform to JIS standards for radially lead components on tape (JIS C0805). The header can thus be loaded into most general-purpose radial lead component insertion machines. Staggered pins The 2.5mm (.098") pitch staggered pins increase the mechanical stability and strength of the connector's solder points. The MBS connector also features solder crack preventing materials. Temporary board retention feature The MBS header has a locking boss that allows it to be temporarily mounted on the printed circuit board. This prevents the header from lifting or changing position while it is being processed. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
