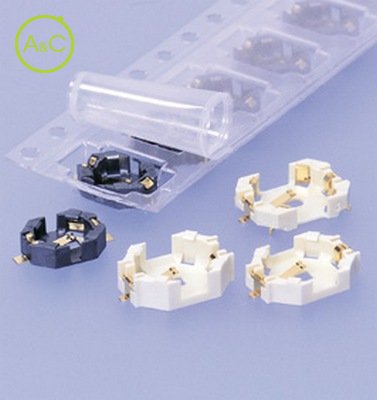

Connector for button batteries

  • PB CONNECTOR
Download product sheet

Applicable Battery

  • 414
  • 518
  • 614
  • 621
Article Number PB-414SR12K-TF PB-414SS12-TF
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description For Button Battery For Button Battery
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pcb Mount Style Surface Mount Technology (SMT) Surface Mount Technology (SMT)
Remark / Low profile
Eigenschappen verschillen tussen varianten en subvarianten

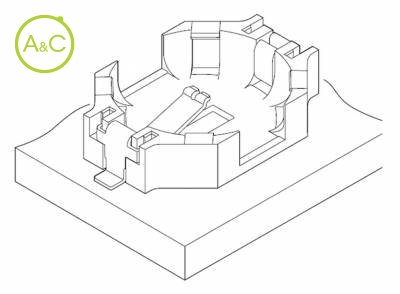

Featuring double contact points, secure locking and surface mountability, this button battery connector not only offers great performance, but is also quick and easy to process and apply to the PCB. Designed for mobile phones and other small mobile devices, this button battery connector is suitable for use with most common button batteries (e.g. types; 414, 518, 614 & 621). Resistant to the shock Metal hooks: 614 type holds the battery with the 4 independant contacts. Resin hooks: 414/518/614/621 types hold the battery with the housing intergrated fingers. Double contact point The contact has double contact points for secure contact performance. Standards UL Recognized E60389 RoHS Compliant
