JST
Number Of Poles
- 4
- 5
| Article Number | PLIP-04V-S |
| Number Of Contacts | 4 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark | Secure locking device |
Eigenschappen verschillen tussen varianten en subvarianten

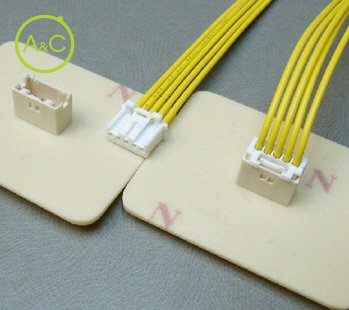

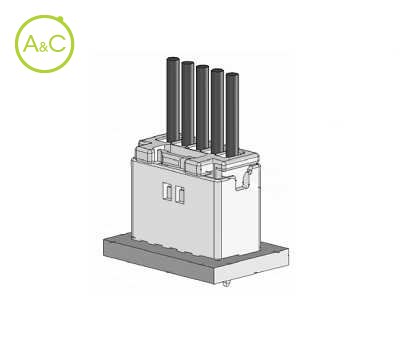

This 2mm pitch PCB Connector is a low profile type wire to board connector that has a mechanism to prevent an incomplete mating when mating the connector.
Inertia lock mechanism
This mechanism prevents an incomplete mating and ensures a complete mating by utilizing the inertia force generated by mating action of socket housing lock and header.
Secure locking device
This connector has the secure locking device that prevents the socket connector coming off due to routing of wires and vibration and provides the countermeasure for inverse insertion and mismatching insertion.
Low profile
Mating height is 10mm or less.
RoHS Compliant
