Terug naar productoverzicht
JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
| Article Number | S02B-XASS-1 | S02B-XASS-1N-BN |
| Number Of Contacts | 2 | 2 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
| Article Number | S03B-XASK-1 | S03B-XASS-1N-BN |
| Number Of Contacts | 3 | 3 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
| Article Number | S04B-XASK-1 | S04B-XASS-1N-BN |
| Number Of Contacts | 4 | 4 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
| Article Number | S05B-XASK-1 | S05B-XASS-1N-BN |
| Number Of Contacts | 5 | 5 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
| Article Number | S06B-XASK-1 | S06B-XASS-1N-BN |
| Number Of Contacts | 6 | 6 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
| Article Number | S07B-XASK-1 | S07B-XASS-1N-BN |
| Number Of Contacts | 7 | 7 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
| Article Number | S08B-XASK-1 | S08B-XASS-1N-BN |
| Number Of Contacts | 8 | 8 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
| Article Number | S09B-XASK-1 | S09B-XASS-1N-BN |
| Number Of Contacts | 9 | 9 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
| Article Number | S10B-XASK-1 | S10B-XASS-1N-BN |
| Number Of Contacts | 10 | 10 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
| Article Number | S11B-XASK-1 | S11B-XASS-1N-BN |
| Number Of Contacts | 11 | 11 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
| Article Number | S12B-XASK-1 | S12B-XASS-1N-BN |
| Number Of Contacts | 12 | 12 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
| Article Number | S13B-XASK-1 | S13B-XASS-1N-BN |
| Number Of Contacts | 13 | 13 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
| Article Number | S14B-XASK-1 | S14B-XASS-1N-BN |
| Number Of Contacts | 14 | 14 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark | With a hook | Without a hook |
Eigenschappen verschillen tussen varianten en subvarianten

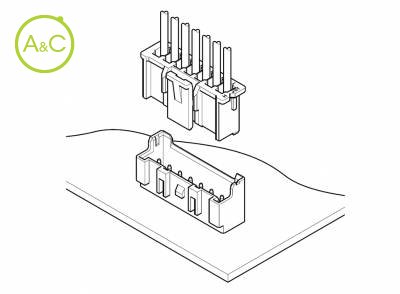

Secure locking device prevents accidental diSConnection.
Header wafer is made of solder crack preventive material, glass-filled PA66 nylon. Header pins are round and reflow-treated, which provides low insertion force.
Shrouded headers on radial-tape are also available. Headers with polarizing bosses are also available.
Locking device
The housing has a locking device to securely hold the header, preventing accidental diSConnection because of external forces that might result from the routing of wires during assembly process or of vibration.
Solder crack preventive material
Header wafer is made of glass-filled PA66 nylon thus effective against the solder crack problem.
Low insertion force
Header pins are round and reflow-treated, which provides low insertion force.
Insertion guide mechanism
Header has housing insertion guides for easy and secure insertion.
Applicable to automatic board mounting machine
Radial taped or stick-mounted headers are also available for automatic component insertion machine.
Polarizing boss
Headers with polarizing bosses are available.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified R9851220
RoHS Compliant
