JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
| Article Number | S02B-ZESK-2D |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S03B-ZESK-2D |
| Number Of Contacts | 3 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S04B-ZESK-2D |
| Number Of Contacts | 4 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S05B-ZESK-2D |
| Number Of Contacts | 5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S06B-ZESK-2D |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S07B-ZESK-2D |
| Number Of Contacts | 7 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S08B-ZESK-2D |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S09B-ZESK-2D |
| Number Of Contacts | 9 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S10B-ZESK-2D |
| Number Of Contacts | 10 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S11B-ZESK-2D |
| Number Of Contacts | 11 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S12B-ZESK-2D |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S13B-ZESK-2D |
| Number Of Contacts | 13 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S14B-ZESK-2D |
| Number Of Contacts | 14 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S15B-ZESK-2D |
| Number Of Contacts | 15 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | S16B-ZESK-2D |
| Number Of Contacts | 16 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Eigenschappen verschillen tussen varianten en subvarianten

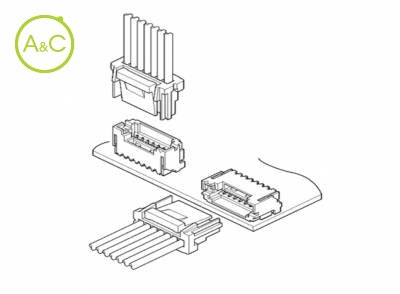

1.5mm pitch secure lock type connector. Fork-shaped header contact provides the good mating feeling and secure mating operation.
RoHS Compliant
