Shrouded Header THT Friction lock type

  • JL CONNECTOR
Download product sheet

Number Of Poles

  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 15
Article Number S10B-JL-F-E
Number Of Contacts 10
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 3 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Eigenschappen verschillen tussen varianten en subvarianten

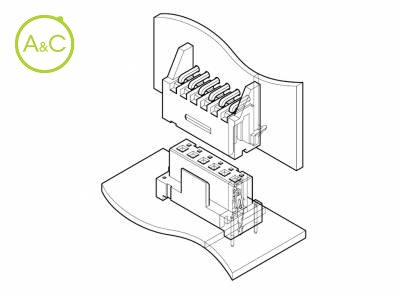

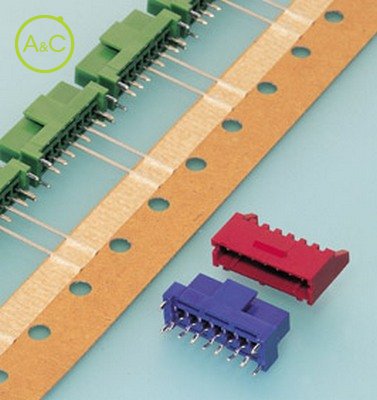

The JL connector is designed for board-to-board connection in electronic equipment requiring high-density mounting and unitization. This connector is highly resistant to equipment vibration and shock. High contact pressure High pressure contacts mate with each male pin on two sides. This assures stable connector performance during equipment vibration and shock. Housing lock assures good connection even after severe shock & vibration The connector halves can be easily mated, yet have a high retention force because of the housing lock mechanism. Even severe shocks and long periods of vibration will not interrupt these circuits. Both secure lock and friction lock connectors are available. Polarized, fully shrouded header aligns the connector halves before their pins make contact Lead-in chamfers, grooves, and matching ribs align the housings well before the contacts mate, thus preventing damage caused by misaligment or mismating. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
